OpenCV und Python
Categories:
computer vision
OpenCV und Python
https://de.wikipedia.org/wiki/OpenCV
Python opencv tutorial
Example

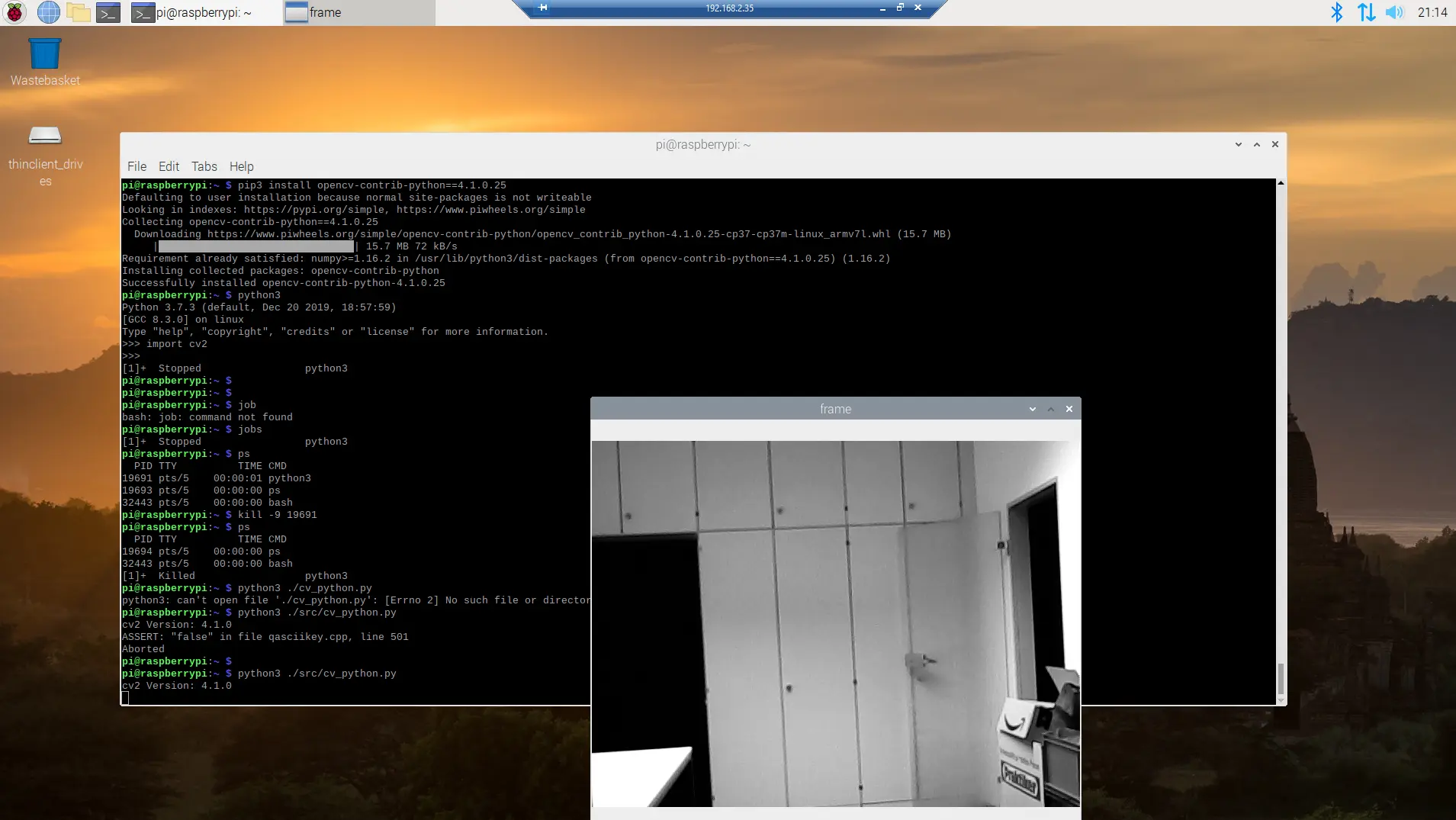

Python use opencv to save image from video capture
# ?
sudo pip3 install opencv-python
sudo pip3 install numpy
sudo apt install python3-opencv
# on linux/ Raspi
sudo apt install libjasper1
sudo apt install libqtgui4
# opencv
import numpy as np
import cv2
print ("cv2 Version:", cv2.__version__)
cap = cv2.VideoCapture(0)
count = 10000
while(True):
# Capture frame-by-frame
ret, frame = cap.read()
# Our operations on the frame come here
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
# Display the resulting frame
cv2.imshow('frame', gray)
if cv2.waitKey(1) & 0xFF == ord('s'):
count += 1
filename = "frame"+ str(count) + ".png"
print ("save" , filename)
cv2.imwrite(filename, frame)
filename = "frame"+ str(count) + "_sw.png"
cv2.imwrite(filename, gray)
# When everything done, release the capture
cap.release()
cv2.destroyAllWindows()

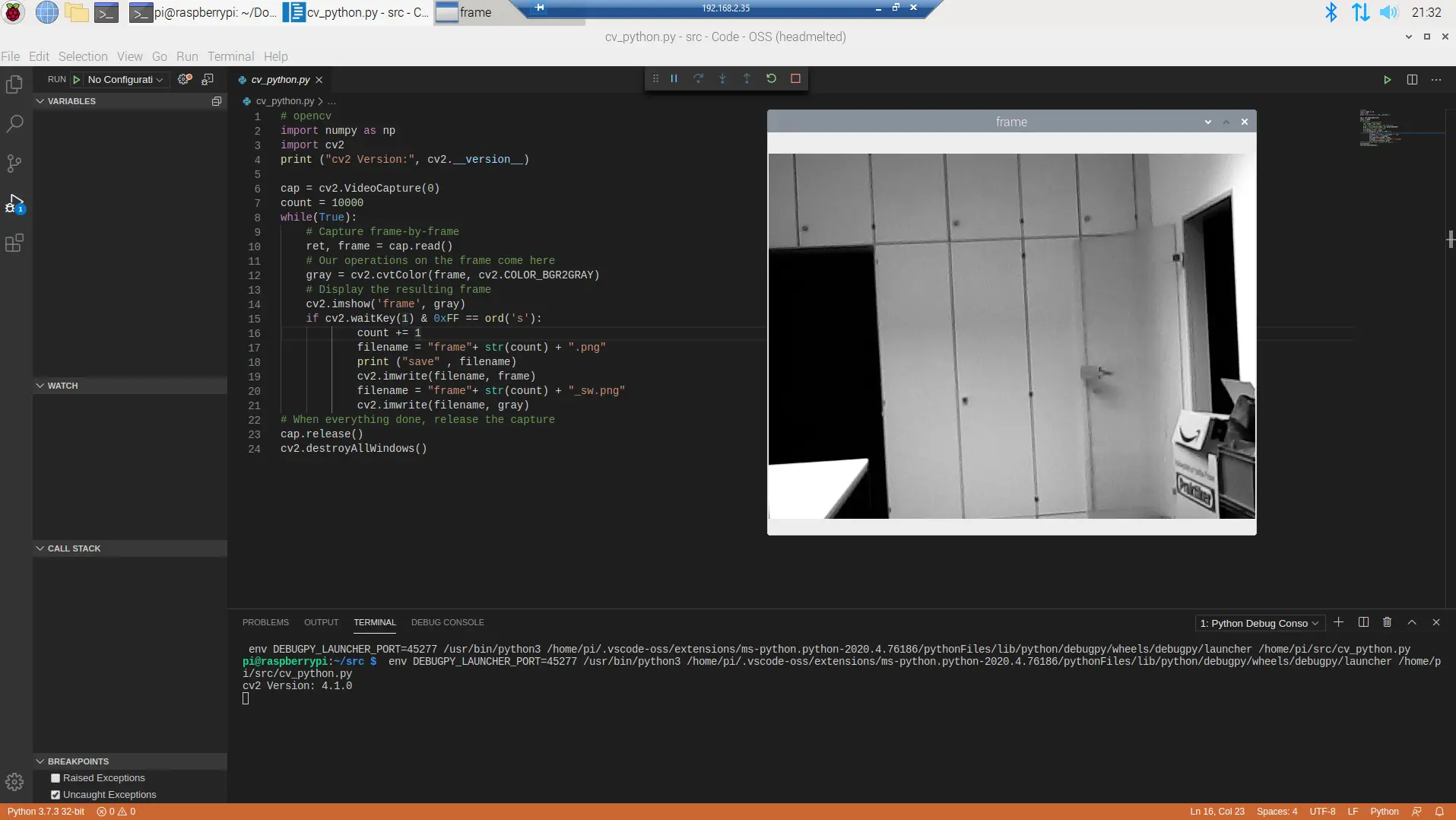

Install VS Code on Raspi4
https://www.hanselman.com/blog/HowToInstallVisualStudioCodeOnARaspberryPi4InMinutes.aspx
Beispiel Gesicht und Augen-Erkennung (2020-09-10)
import cv2
def generate():
face_cascade = cv2.CascadeClassifier(cv2.data.haarcascades + 'haarcascade_frontalface_default.xml')
eye_cascade = cv2.CascadeClassifier(cv2.data.haarcascades + 'haarcascade_eye.xml')
camera = cv2.VideoCapture(0)
writepgm = False
count = 0
while (True):
ret, frame = camera.read()
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
faces = face_cascade.detectMultiScale(gray, 1.3, 5)
for (x,y,w,h) in faces:
img = cv2.rectangle(frame,(x,y),(x+w,y+h),(255,0,0),2)
if writepgm:
f = cv2.resize(gray[y:y+h, x:x+w], (200, 200))
cv2.imwrite('./data/%s.pgm' % str(count), f)
count += 1
roi_gray = gray[y:y+h, x:x+w]
eyes = eye_cascade.detectMultiScale(roi_gray, 1.03, 5, 0, (40,40))
for (ex,ey,ew,eh) in eyes:
cv2.rectangle(frame,(x+ex,y+ey),(x+ex+ew, y+ey+eh),(0,255,0),2)
cv2.imshow("camera", frame)
if cv2.waitKey(1000 // 12) & 0xff == ord("q"):
break
camera.release()
cv2.destroyAllWindows()
if __name__ == "__main__":
generate()
Written on April 20, 2020
