Graphhopper Routing & Map Matching for Rail + Truck with java and OSM
Graphhopper Rail and Street Routing
https://github.com/geofabrik/OpenRailRouting
Start MapMatch
set log4j.configurationFile = log4j2.yaml
java -Dgraphhopper.datareader.file=ulm.osm -jar target/railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar import config.yml
java -Dgraphhopper.datareader.file=ulm.osm -jar target/railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar match -V alltracks --gpx-location=gpx/gh_track_6TP.gpx config.yml
gh_track_6TP.gpx
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><gpx xmlns="http://www.topografix.com/GPX/1/1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" creator="Graphhopper version 0.11" version="1.1" xmlns:gh="https://graphhopper.com/public/schema/gpx/1.1">
<metadata><copyright author="OpenStreetMap contributors"/><link href="http://graphhopper.com"><text>GraphHopper GPX</text></link><time>2019-07-12T14:20:11Z</time></metadata>
<trk><name>GraphHopper Track</name><trkseg>
<trkpt lat="48.197411" lon="10.102224"><time>2019-07-12T14:20:11Z</time></trkpt>
<trkpt lat="48.294044" lon="10.076729"><time>2019-07-12T14:46:30Z</time></trkpt>
<trkpt lat="48.396915" lon="10.021243"><time>2019-07-12T15:15:50Z</time></trkpt>
<trkpt lat="48.397152" lon="10.020657"><time>2019-07-12T15:15:57Z</time></trkpt>
<trkpt lat="48.39737" lon="10.019981"><time>2019-07-12T15:16:05Z</time></trkpt>
<trkpt lat="48.405633" lon="9.831699"><time>2019-07-12T15:55:38Z</time></trkpt>
</trkseg>
</trk>
</gpx>

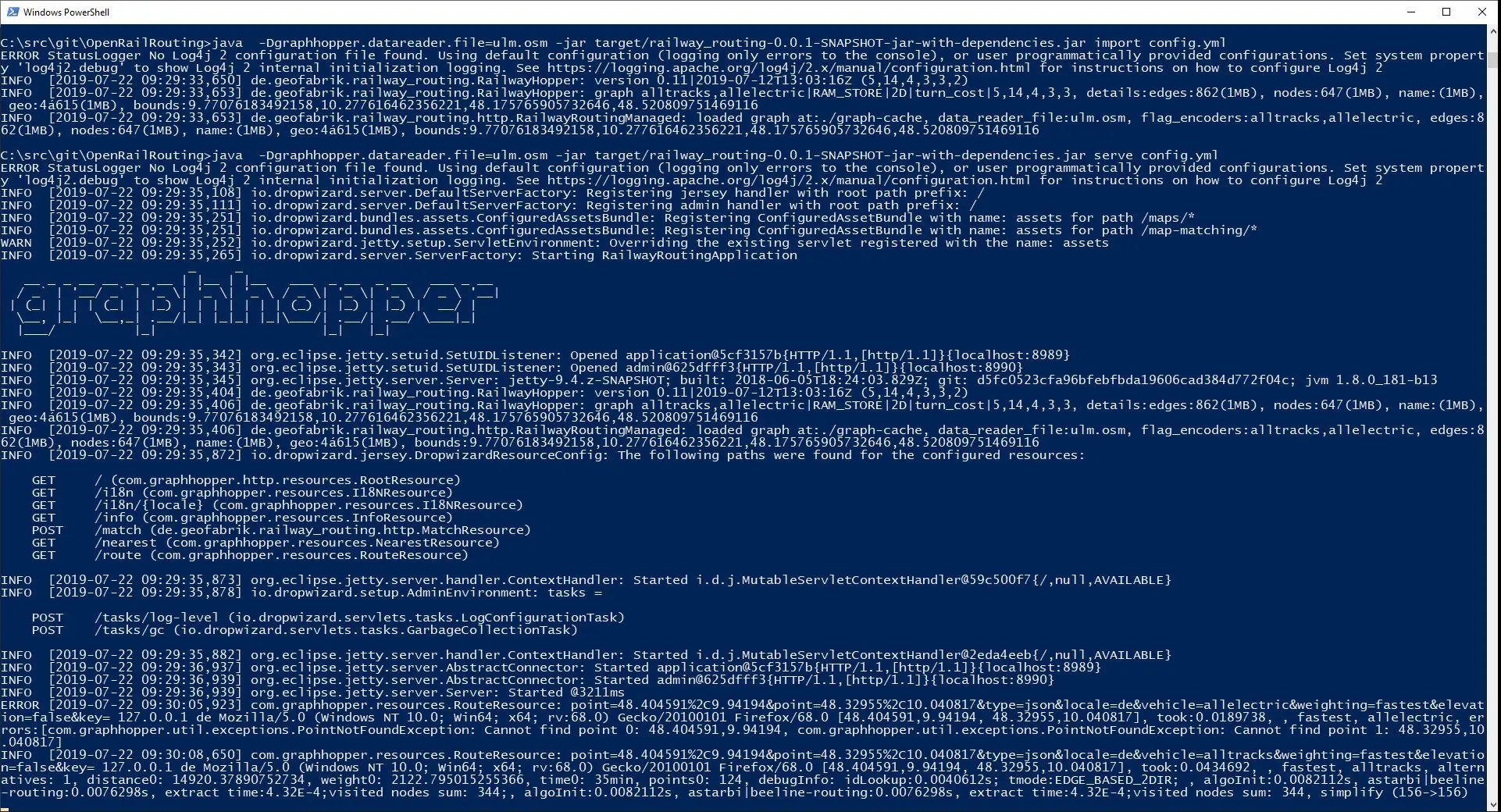

start web
set log4j.configurationFile = log4j2.yaml
java -Dgraphhopper.datareader.file=ulm.osm -jar target/railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar import config.yml
java -Dgraphhopper.datareader.file=ulm.osm -jar target/railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar serve config.yml
Web - View Graphhopper rail:

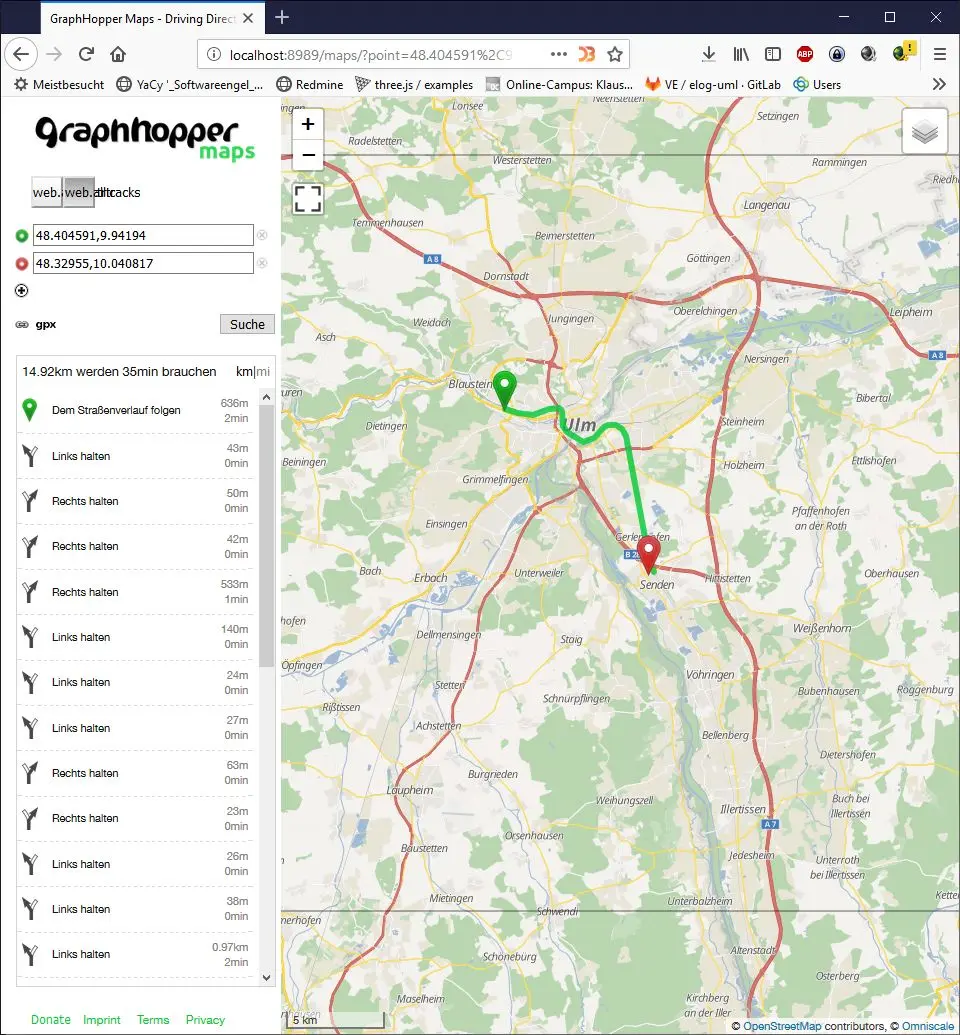

- Routing Ulm:
)
- Routing Arnsberg:

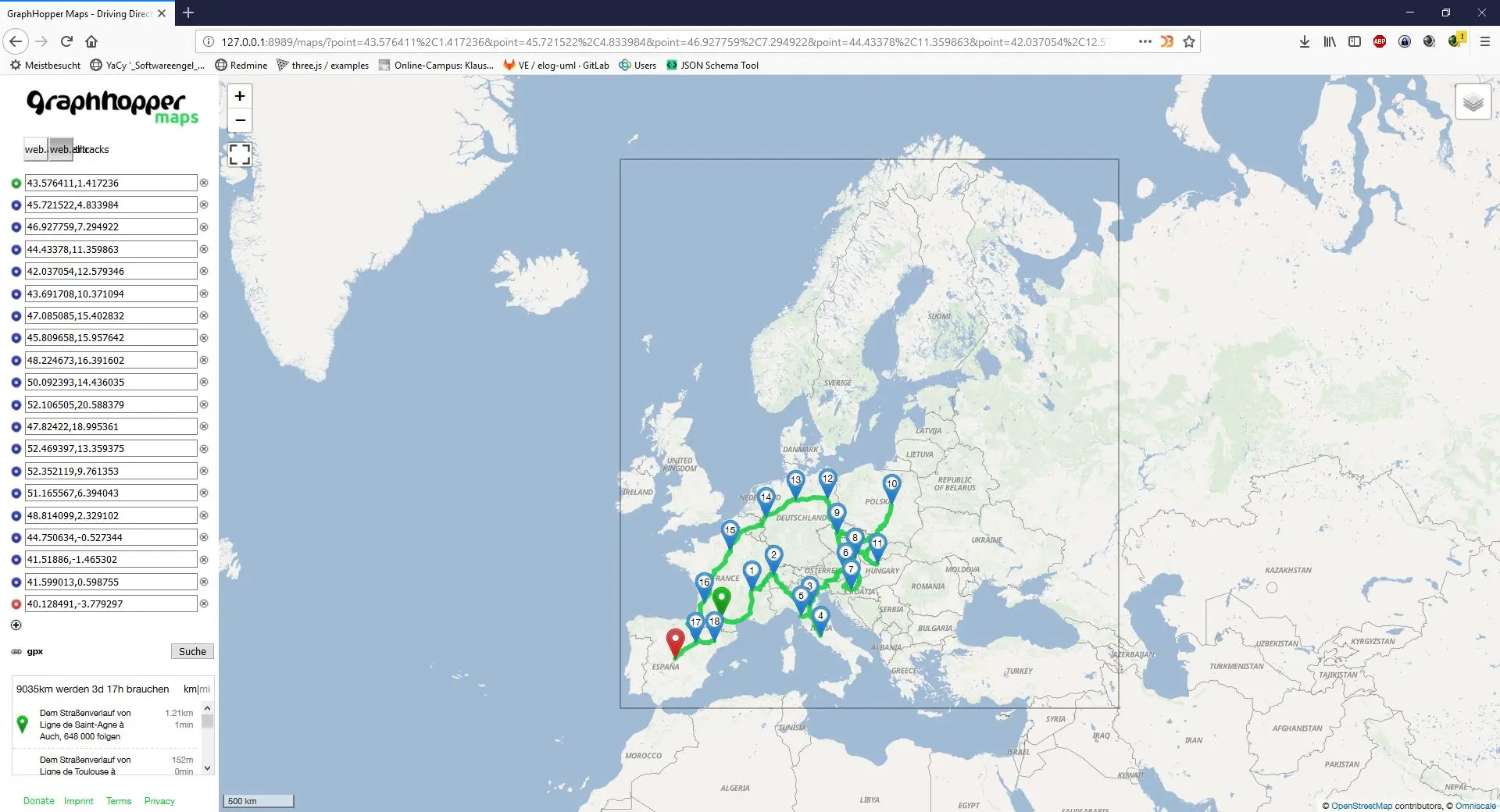

- Routing Europa:
Requerst für Map:
http://127.0.0.1:8989/maps/?point=43.576411%2C1.417236&point=45.721522%2C4.833984&point=46.927759%2C7.294922&point=44.43378%2C11.359863&point=42.037054%2C12.579346&point=43.691708%2C10.371094&point=47.085085%2C15.402832&point=45.809658%2C15.957642&point=48.224673%2C16.391602&point=50.092393%2C14.436035&point=52.106505%2C20.588379&point=47.82422%2C18.995361&point=52.469397%2C13.359375&point=53.842805%2C10.6073&point=54.487591%2C9.817657&point=55.252512%2C9.457855&point=55.496749%2C9.461975&point=55.652798%2C12.337646&point=59.277108%2C17.097473&point=52.352119%2C9.761353&point=51.165567%2C6.394043&point=48.814099%2C2.329102&point=44.750634%2C-0.527344&point=41.51886%2C-1.465302&point=41.599013%2C0.598755&point=40.128491%2C-3.779297&locale=de&vehicle=alltracks&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
Requerst für OSM-Map auf hq.softwareengel.de:

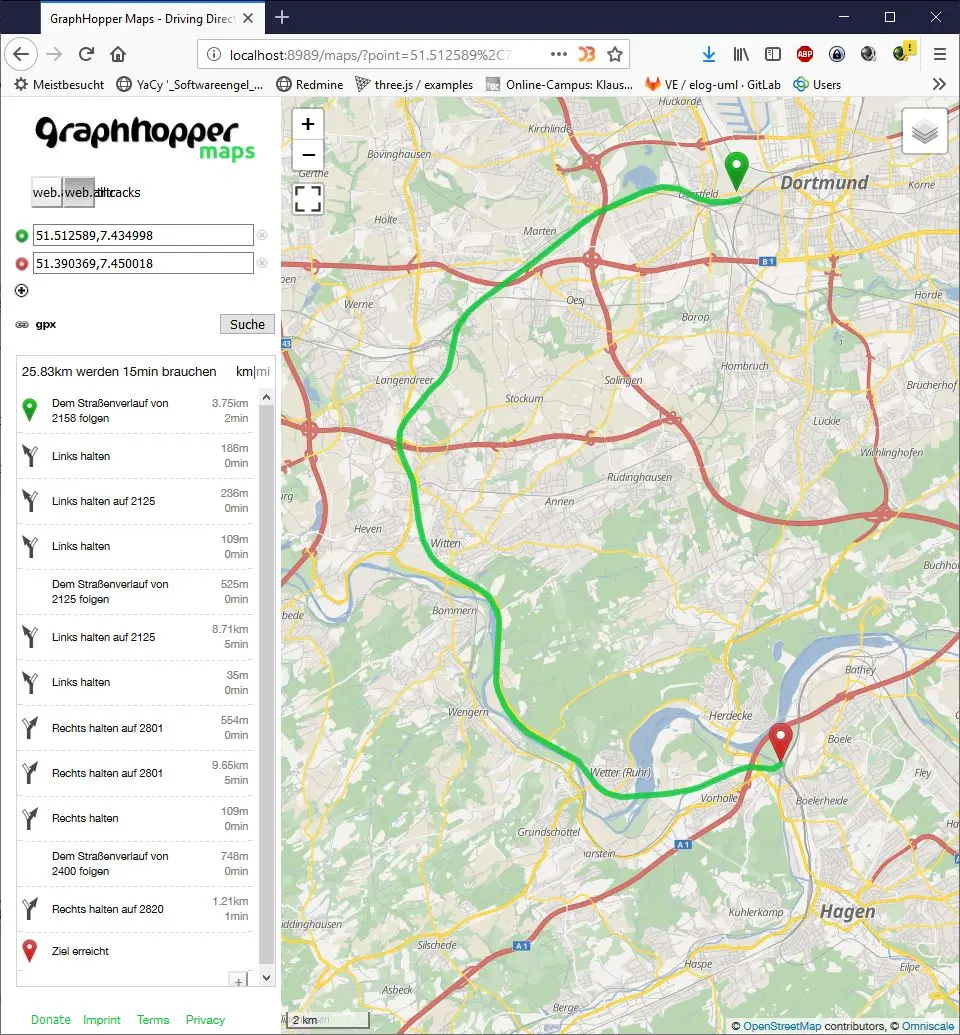

http://hq.softwareengel.de:8989/maps/?point=50.945882%2C7.013526&point=51.091448%2C7.013397&point=51.167719%2C7.012711&point=51.273944%2C7.229004&locale=de&vehicle=alltracks&weighting=fastest&elevation=false&use_miles=false&layer=OpenStreetMap
http://hq.softwareengel.de:8989/maps/?point=51.344339%2C6.833496&point=48.893615%2C2.416992&point=45.821143%2C4.866943&point=41.516804%2C2.213745&point=43.249204%2C-1.977539&point=40.722283%2C-3.180542&point=39.070379%2C-8.87146&point=38.401949%2C-0.681152&point=41.668809%2C-0.845947&point=43.560491%2C1.411743&point=44.809122%2C-0.593262&point=47.184113%2C-1.419983&point=44.658885%2C10.851402&point=44.067854%2C12.480469&point=41.934977%2C12.507935&point=46.494611%2C11.299438&point=47.085085%2C15.424805&point=48.188063%2C11.590576&point=50.071244%2C14.436035&point=53.514185%2C10.041504&point=55.66984%2C12.474976&point=59.279047%2C18.006592&point=59.377988%2C13.535156&point=59.927496%2C10.799561&point=57.715885%2C11.942139&point=50.348966%2C19.651794&point=54.597528%2C25.3125&point=55.544173%2C34.909058&point=53.388243%2C34.035645&point=52.462704%2C31.014404&point=52.295042%2C21.005859&locale=de&vehicle=alltracks&weighting=fastest&elevation=false&use_miles=false&layer=OpenStreetMap
http://hq.softwareengel.de:8989/maps/?point=47.137425%2C15.336914&point=46.721035%2C14.364624&point=51.351201%2C4.454956&point=51.158677%2C3.251953&point=50.937662%2C1.757813&point=51.549751%2C-0.159302&point=52.516221%2C-1.801758&point=55.890716%2C-4.042969&point=48.908059%2C2.438965&point=48.118434%2C-1.532593&point=45.79817%2C4.855957&point=44.962855%2C-0.22522&point=43.258706%2C-1.978912&point=41.75902%2C-0.823975&point=39.532644%2C-0.32341&point=37.920368%2C-4.721375&point=37.492294%2C-5.932617&point=38.603993%2C-9.091187&point=41.120228%2C-8.638&point=43.329174%2C-8.44162&point=36.259778%2C-5.438232&point=40.423951%2C-3.435974&point=43.794146%2C7.380409&point=41.95132%2C12.414551&point=41.07521%2C14.205322&point=44.072787%2C15.379486&point=42.660222%2C21.084137&point=42.644898%2C23.549194&point=43.620171%2C24.675293&point=41.136262%2C28.601532&point=39.970806%2C32.541504&point=38.634036%2C35.194702&point=40.526327%2C43.005981&point=41.607228%2C44.868164&point=43.197167%2C44.615479&point=38.444985%2C38.259888&point=38.552461%2C27.03186&point=38.117272%2C23.806&point=45.371443%2C27.938232&point=47.338823%2C31.096802&point=48.904449%2C33.299561&point=47.82422%2C34.887085&point=49.435985%2C34.557495&point=51.542919%2C39.243164&point=55.606281%2C37.63504&point=59.161852%2C40.0177&point=51.648703%2C36.00769&point=50.454007%2C30.695801&point=54.669066%2C25.3125&point=52.140231%2C20.98938&point=50.014799%2C19.940186&point=51.14834%2C17.097473&point=48.283193%2C16.430054&point=45.863238%2C22.983398&point=47.480088%2C19.25354&point=44.087585%2C12.420044&point=45.479392%2C12.233276&point=45.69467%2C13.85376&point=44.427896%2C8.889313&point=52.038977%2C4.537354&point=52.328625%2C5.015259&point=50.986099%2C7.025757&point=51.495065%2C7.341614&point=52.24462%2C7.981567&point=53.041213%2C8.909912&point=51.55829%2C9.920654&point=51.349485%2C9.516907&point=50.155786%2C8.640747&point=49.477048%2C10.980835&point=48.037692%2C11.585083&point=47.802087%2C13.068237&point=48.806863%2C9.217529&point=47.393701%2C8.491058&point=52.449314%2C9.733887&point=53.555606%2C9.935074&point=54.13026%2C12.21405&point=54.77693%2C9.50592&point=55.665193%2C12.461243&point=55.583002%2C12.996826&point=56.14708%2C13.757629&point=59.850333%2C10.789948&point=60.401645%2C5.419006&point=59.293942%2C18.019638&point=62.408185%2C17.232056&point=59.380786%2C25.054321&point=60.524861%2C25.153198&point=56.98989%2C24.180908&point=52.059246%2C11.68396&point=51.013755%2C13.801575&point=51.426614%2C12.367859&point=52.566334%2C13.084717&locale=de&vehicle=alltracks&weighting=fastest&elevation=false&use_miles=false&layer=OpenStreetMap

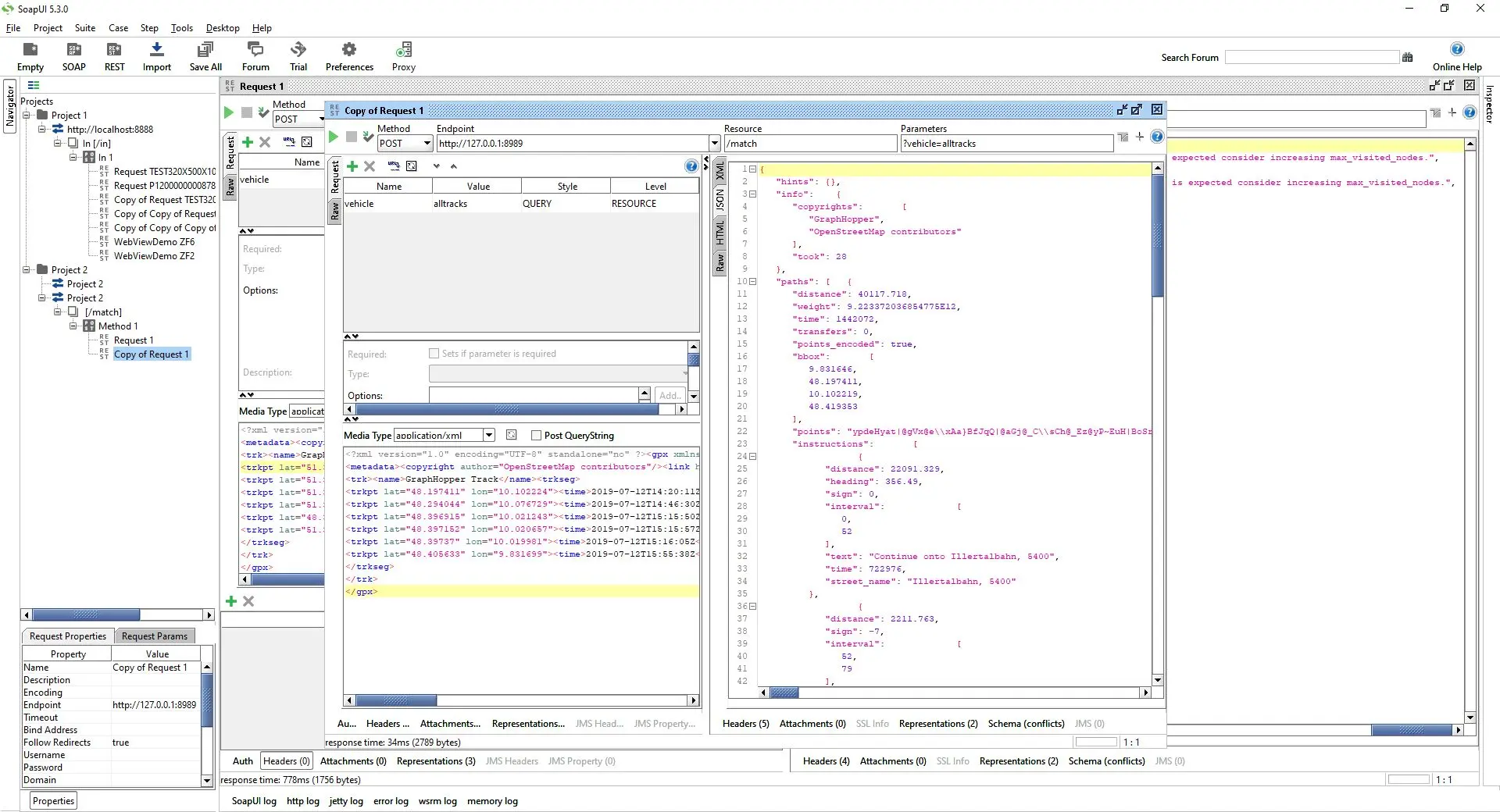

Web Soap UI Client mit POST und XML
Request GH Rail Match XML (good request)
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "POST /match?vehicle=alltracks HTTP/1.1[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "Accept-Encoding: gzip,deflate[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "Content-Type: application/xml[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "Content-Length: 988[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "Host: 127.0.0.1:8989[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "Connection: Keep-Alive[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "User-Agent: Apache-HttpClient/4.1.1 (java 1.5)[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<?xml version="1.0" encoding="UTF-8" standalone="no" ?><gpx xmlns="http://www.topografix.com/GPX/1/1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" creator="Graphhopper version 0.11" version="1.1" xmlns:gh="https://graphhopper.com/public/schema/gpx/1.1">[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<metadata><copyright author="OpenStreetMap contributors"/><link href="http://graphhopper.com"><text>GraphHopper GPX</text></link><time>2019-07-12T14:20:11Z</time></metadata>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<trk><name>GraphHopper Track</name><trkseg>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<trkpt lat="48.197411" lon="10.102224"><time>2019-07-12T14:20:11Z</time></trkpt>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<trkpt lat="48.294044" lon="10.076729"><time>2019-07-12T14:46:30Z</time></trkpt>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<trkpt lat="48.396915" lon="10.021243"><time>2019-07-12T15:15:50Z</time></trkpt>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<trkpt lat="48.397152" lon="10.020657"><time>2019-07-12T15:15:57Z</time></trkpt>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<trkpt lat="48.39737" lon="10.019981"><time>2019-07-12T15:16:05Z</time></trkpt>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "<trkpt lat="48.405633" lon="9.831699"><time>2019-07-12T15:55:38Z</time></trkpt>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "</trkseg>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "</trk>[\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:>> "</gpx>"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:<< "HTTP/1.1 200 OK[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:<< "Date: Tue, 23 Jul 2019 07:46:51 GMT[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:<< "X-GH-Took: 13[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:<< "Content-Type: application/json[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:<< "Content-Length: 2789[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:<< "[\r][\n]"
Tue Jul 23 09:46:51 CEST 2019:DEBUG:<< "{"hints":{},"info":{"copyrights":["GraphHopper","OpenStreetMap contributors"],"took":13},"paths":[{"distance":40117.718,"weight":9.223372036854775E12,"time":1442072,"transfers":0,"points_encoded":true,"bbox":[9.831646,48.197411,10.102219,48.419353],"points":"ypdeHyat|@gVx@e\\xAa}BfJqQ|@aGj@_C\\sCh@_Ez@yP~EuH|BoSrF{IjCyUnGa]xJo|@hPwh@tJoRfD_VpEwb@nHeh@|J}Bl@aDdAoHtCeF|BgGnDyNvKkT|QaBpAq|BnmB_ZbVaBtA}AnAuN|LcAdA_MlK}GvFcCfB}CpBuIzEmGpCeLhDoE`Ayc@pIeNdCgCj@iCf@sKlBsJ~A}S|DyKzBe`AzQ}|Bxb@eb@~HsA^}Ah@_Bp@qBtAgBfBiBzBeBvCyBzEaApCm@`Ca@bCi@jEMhBKxBEhFDtDH`CNvBR`BZvBj@lCt@nCz@|B|@pBp@lAdBhCtG|JlDpGvCvFnBbFpA|CnAhDpApEjAjFRzA\\tDL`EAnBE`CM~BS~B[dCq@tDOh@aAtCyE|KuI|T}@rB]n@cA`Be@n@_AzAW\\cCvCm@t@i@h@oDdCaBx@a@JgBZg@F_Qd@gIOiAFuAb@k@^gAhA_@h@i@`Ac@pAc@`Bc@bC]tCa@bFG`B?nAFxCfBrWVbDZdCd@hCvDnQXnAnAhEr@nCVfATpAfAnIJrAPpFFpHSpGsAtRg@vFm@fFoB|Nq@vDyPrhAwBxL}@rE}@zD{CdLoCtIwBbGyDnJuP`_@uS~c@oBxEy@hCeAzDa@lB{@`GUfCMzBIxBCtBA~BFxDHdBPdCb@nEp@dFxC|RbB`Mn@hGV`EFpDE`FG`B_@lFsJ`dAW~DMtECfFF`ETvE\\zDj@`Ex@|D~@nDdA|ChAjC~@hBjAlBvCxDtIxIdEnE~D|DnCxC~@jAx@nAhAvBdAzBl@|AdBzGn@xDRvAVdCLhBFvAJxFErCIhCKtBStBoAfK_Gzb@SlCQfDEjDB`CNtDRjCf@lDfAhFjA`D|@nB`CxDpA|AxCbDpL|M","instructions":[{"distance":22091.329,"heading":356.49,"sign":0,"interval":[0,52],"text":"Continue onto Illertalbahn, 5400","time":722976,"street_name":"Illertalbahn, 5400"},{"distance":2211.763,"sign":-7,"interval":[52,79],"text":"Keep left onto 5400","time":80529,"street_name":"5400"},{"distance":2136.62,"sign":0,"interval":[79,103],"text":"Continue onto 4700","time":90223,"street_name":"4700"},{"distance":27.644,"sign":0,"interval":[103,104],"text":"Continue onto 4500","time":1105,"street_name":"4500"},{"distance":49.084,"sign":-7,"interval":[104,105],"text":"Keep left","time":3212,"street_name":""},{"distance":17.639,"sign":0,"interval":[105,106],"text":"Continue onto 4500","time":705,"street_name":"4500"},{"distance":92.066,"sign":-7,"interval":[106,107],"text":"Keep left onto 4541","time":3682,"street_name":"4541"},{"distance":2279.316,"sign":-7,"interval":[107,137],"text":"Keep left onto 4541","time":91165,"street_name":"4541"},{"distance":1282.242,"sign":7,"interval":[137,150],"text":"Keep right onto 4541","time":51283,"street_name":"4541"},{"distance":7494.544,"sign":0,"interval":[150,207],"text":"Continue onto 4540","time":299775,"street_name":"4540"},{"distance":2435.471,"sign":7,"interval":[207,234],"text":"Keep right onto 4540","time":97417,"street_name":"4540"},{"distance":0.0,"sign":4,"last_heading":216.21135357056747,"interval":[234,234],"text":"Arrive at destination","time":0,"street_name":""}],"legs":[],"details":{},"ascend":0.0,"descend":0.0,"snapped_waypoints":""}],"map_matching":{"original_distance":37097.25613455281,"distance":40117.718365362096,"time":1442072,"original_time":5727000}}"
Response
{
"hints": {},
"info": {
"copyrights": [
"GraphHopper",
"OpenStreetMap contributors"
],
"took": 13
},
"paths": [ {
"distance": 40117.718,
"weight": 9.223372036854775E12,
"time": 1442072,
"transfers": 0,
"points_encoded": true,
"bbox": [
9.831646,
48.197411,
10.102219,
48.419353
],
"points": "ypdeHyat|@gVx@e\\xAa}BfJqQ|@aGj@_C\\sCh@_Ez@yP~EuH|BoSrF{IjCyUnGa]xJo|@hPwh@tJoRfD_VpEwb@nHeh@|J}Bl@aDdAoHtCeF|BgGnDyNvKkT|QaBpAq|BnmB_ZbVaBtA}AnAuN|LcAdA_MlK}GvFcCfB}CpBuIzEmGpCeLhDoE`Ayc@pIeNdCgCj@iCf@sKlBsJ~A}S|DyKzBe`AzQ}|Bxb@eb@~HsA^}Ah@_Bp@qBtAgBfBiBzBeBvCyBzEaApCm@`Ca@bCi@jEMhBKxBEhFDtDH`CNvBR`BZvBj@lCt@nCz@|B|@pBp@lAdBhCtG|JlDpGvCvFnBbFpA|CnAhDpApEjAjFRzA\\tDL`EAnBE`CM~BS~B[dCq@tDOh@aAtCyE|KuI|T}@rB]n@cA`Be@n@_AzAW\\cCvCm@t@i@h@oDdCaBx@a@JgBZg@F_Qd@gIOiAFuAb@k@^gAhA_@h@i@`Ac@pAc@`Bc@bC]tCa@bFG`B?nAFxCfBrWVbDZdCd@hCvDnQXnAnAhEr@nCVfATpAfAnIJrAPpFFpHSpGsAtRg@vFm@fFoB|Nq@vDyPrhAwBxL}@rE}@zD{CdLoCtIwBbGyDnJuP`_@uS~c@oBxEy@hCeAzDa@lB{@`GUfCMzBIxBCtBA~BFxDHdBPdCb@nEp@dFxC|RbB`Mn@hGV`EFpDE`FG`B_@lFsJ`dAW~DMtECfFF`ETvE\\zDj@`Ex@|D~@nDdA|ChAjC~@hBjAlBvCxDtIxIdEnE~D|DnCxC~@jAx@nAhAvBdAzBl@|AdBzGn@xDRvAVdCLhBFvAJxFErCIhCKtBStBoAfK_Gzb@SlCQfDEjDB`CNtDRjCf@lDfAhFjA`D|@nB`CxDpA|AxCbDpL|M",
"instructions": [
{
"distance": 22091.329,
"heading": 356.49,
"sign": 0,
"interval": [
0,
52
],
"text": "Continue onto Illertalbahn, 5400",
"time": 722976,
"street_name": "Illertalbahn, 5400"
},
{
"distance": 2211.763,
"sign": -7,
"interval": [
52,
79
],
"text": "Keep left onto 5400",
"time": 80529,
"street_name": "5400"
},
{
"distance": 2136.62,
"sign": 0,
"interval": [
79,
103
],
"text": "Continue onto 4700",
"time": 90223,
"street_name": "4700"
},
{
"distance": 27.644,
"sign": 0,
"interval": [
103,
104
],
"text": "Continue onto 4500",
"time": 1105,
"street_name": "4500"
},
{
"distance": 49.084,
"sign": -7,
"interval": [
104,
105
],
"text": "Keep left",
"time": 3212,
"street_name": ""
},
{
"distance": 17.639,
"sign": 0,
"interval": [
105,
106
],
"text": "Continue onto 4500",
"time": 705,
"street_name": "4500"
},
{
"distance": 92.066,
"sign": -7,
"interval": [
106,
107
],
"text": "Keep left onto 4541",
"time": 3682,
"street_name": "4541"
},
{
"distance": 2279.316,
"sign": -7,
"interval": [
107,
137
],
"text": "Keep left onto 4541",
"time": 91165,
"street_name": "4541"
},
{
"distance": 1282.242,
"sign": 7,
"interval": [
137,
150
],
"text": "Keep right onto 4541",
"time": 51283,
"street_name": "4541"
},
{
"distance": 7494.544,
"sign": 0,
"interval": [
150,
207
],
"text": "Continue onto 4540",
"time": 299775,
"street_name": "4540"
},
{
"distance": 2435.471,
"sign": 7,
"interval": [
207,
234
],
"text": "Keep right onto 4540",
"time": 97417,
"street_name": "4540"
},
{
"distance": 0,
"sign": 4,
"last_heading": 216.21135357056747,
"interval": [
234,
234
],
"text": "Arrive at destination",
"time": 0,
"street_name": ""
}
],
"legs": [],
"details": {},
"ascend": 0,
"descend": 0,
"snapped_waypoints": ""
}],
"map_matching": {
"original_distance": 37097.25613455281,
"distance": 40117.718365362096,
"time": 1442072,
"original_time": 5727000
}
} ### Request GH Rail Match XML (bad request)
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "POST /match?vehicle=alltracks HTTP/1.1[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "Accept-Encoding: gzip,deflate[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "Content-Type: application/xml[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "Content-Length: 981[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "Host: 127.0.0.1:8989[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "Connection: Keep-Alive[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "User-Agent: Apache-HttpClient/4.1.1 (java 1.5)[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<?xml version="1.0" encoding="UTF-8" standalone="no" ?><gpx xmlns="http://www.topografix.com/GPX/1/1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" creator="Graphhopper version 0.11" version="1.1" xmlns:gh="https://graphhopper.com/public/schema/gpx/1.1">[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<metadata><copyright author="OpenStreetMap contributors"/><link href="http://graphhopper.com"><text>GraphHopper GPX</text></link><time>2019-07-12T14:20:11Z</time></metadata>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<trk><name>GraphHopper Track</name><trkseg>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<trkpt lat="51.372406" lon="7.38792"><time>2019-07-12T14:20:11Z</time></trkpt>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<trkpt lat="51.382957" lon="7.41997"><time>2019-07-12T14:46:30Z</time></trkpt>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<trkpt lat="51.384111" lon="7.422672"><time>2019-07-12T15:15:50Z</time></trkpt>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<trkpt lat="51.386874" lon="7.43009"><time>2019-07-12T15:15:57Z</time></trkpt>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<trkpt lat="48.39737" lon="10.019981"><time>2019-07-12T15:16:05Z</time></trkpt>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "<trkpt lat="51.389138" lon="7.438345"><time>2019-07-12T15:55:38Z</time></trkpt>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "</trkseg>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "</trk>[\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:>> "</gpx>"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:<< "HTTP/1.1 400 Bad Request[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:<< "Date: Tue, 23 Jul 2019 07:45:37 GMT[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:<< "Content-Type: application/json[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:<< "Content-Length: 1756[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:<< "[\r][\n]"
Tue Jul 23 09:45:37 CEST 2019:DEBUG:<< "{"message":"Sequence is broken for submitted track at time step 4 (6 points). Too long distance to previous measurement? 380686m, observation:48.39737,10.019981,0.0, 1562944565000, 8 candidates: [distance: 0.9967661049530568 to 48.3973616821115,10.019975966693504,NaN, distance: 0.9967661049530568 to 48.3973616821115,10.019975966693504,NaN, distance: 12.031350983351464 to 48.397475914198694,10.02001432359822,NaN, distance: 12.031350983351464 to 48.397475914198694,10.02001432359822,NaN, distance: 30.783105486733163 to 48.39744229012971,10.020383485117186,NaN, distance: 2.9987786030179095 to 48.397390694857926,10.020007044524112,NaN, distance: 2.844571066455726 to 48.39739381359322,10.019995075795576,NaN, distance: 2.844571066455726 to 48.39739381359322,10.019995075795576,NaN]. If a match is expected consider increasing max_visited_nodes.","hints":[{"message":"Sequence is broken for submitted track at time step 4 (6 points). Too long distance to previous measurement? 380686m, observation:48.39737,10.019981,0.0, 1562944565000, 8 candidates: [distance: 0.9967661049530568 to 48.3973616821115,10.019975966693504,NaN, distance: 0.9967661049530568 to 48.3973616821115,10.019975966693504,NaN, distance: 12.031350983351464 to 48.397475914198694,10.02001432359822,NaN, distance: 12.031350983351464 to 48.397475914198694,10.02001432359822,NaN, distance: 30.783105486733163 to 48.39744229012971,10.020383485117186,NaN, distance: 2.9987786030179095 to 48.397390694857926,10.020007044524112,NaN, distance: 2.844571066455726 to 48.39739381359322,10.019995075795576,NaN, distance: 2.844571066455726 to 48.39739381359322,10.019995075795576,NaN]. If a match is expected consider increasing max_visited_nodes.","details":"java.lang.IllegalArgumentException"}]}"
Response GH Rail Match JSON
{
"hints": {},
"info": {
"copyrights": [
"GraphHopper",
"OpenStreetMap contributors"
],
"took": 33
},
"paths": [ {
"distance": 40117.718,
"weight": 9.223372036854775E12,
"time": 1442072,
"transfers": 0,
"points_encoded": true,
"bbox": [
9.831646,
48.197411,
10.102219,
48.419353
],
"points": "ypdeHyat|@gVx@e\\xAa}BfJqQ|@aGj@_C\\sCh@_Ez@yP~EuH|BoSrF{IjCyUnGa]xJo|@hPwh@tJoRfD_VpEwb@nHeh@|J}Bl@aDdAoHtCeF|BgGnDyNvKkT|QaBpAq|BnmB_ZbVaBtA}AnAuN|LcAdA_MlK}GvFcCfB}CpBuIzEmGpCeLhDoE`Ayc@pIeNdCgCj@iCf@sKlBsJ~A}S|DyKzBe`AzQ}|Bxb@eb@~HsA^}Ah@_Bp@qBtAgBfBiBzBeBvCyBzEaApCm@`Ca@bCi@jEMhBKxBEhFDtDH`CNvBR`BZvBj@lCt@nCz@|B|@pBp@lAdBhCtG|JlDpGvCvFnBbFpA|CnAhDpApEjAjFRzA\\tDL`EAnBE`CM~BS~B[dCq@tDOh@aAtCyE|KuI|T}@rB]n@cA`Be@n@_AzAW\\cCvCm@t@i@h@oDdCaBx@a@JgBZg@F_Qd@gIOiAFuAb@k@^gAhA_@h@i@`Ac@pAc@`Bc@bC]tCa@bFG`B?nAFxCfBrWVbDZdCd@hCvDnQXnAnAhEr@nCVfATpAfAnIJrAPpFFpHSpGsAtRg@vFm@fFoB|Nq@vDyPrhAwBxL}@rE}@zD{CdLoCtIwBbGyDnJuP`_@uS~c@oBxEy@hCeAzDa@lB{@`GUfCMzBIxBCtBA~BFxDHdBPdCb@nEp@dFxC|RbB`Mn@hGV`EFpDE`FG`B_@lFsJ`dAW~DMtECfFF`ETvE\\zDj@`Ex@|D~@nDdA|ChAjC~@hBjAlBvCxDtIxIdEnE~D|DnCxC~@jAx@nAhAvBdAzBl@|AdBzGn@xDRvAVdCLhBFvAJxFErCIhCKtBStBoAfK_Gzb@SlCQfDEjDB`CNtDRjCf@lDfAhFjA`D|@nB`CxDpA|AxCbDpL|M",
"instructions": [
{
"distance": 22091.329,
"heading": 356.49,
"sign": 0,
"interval": [
0,
52
],
"text": "Continue onto Illertalbahn, 5400",
"time": 722976,
"street_name": "Illertalbahn, 5400"
},
{
"distance": 2211.763,
"sign": -7,
"interval": [
52,
79
],
"text": "Keep left onto 5400",
"time": 80529,
"street_name": "5400"
},
{
"distance": 2136.62,
"sign": 0,
"interval": [
79,
103
],
"text": "Continue onto 4700",
"time": 90223,
"street_name": "4700"
},
{
"distance": 27.644,
"sign": 0,
"interval": [
103,
104
],
"text": "Continue onto 4500",
"time": 1105,
"street_name": "4500"
},
{
"distance": 49.084,
"sign": -7,
"interval": [
104,
105
],
"text": "Keep left",
"time": 3212,
"street_name": ""
},
{
"distance": 17.639,
"sign": 0,
"interval": [
105,
106
],
"text": "Continue onto 4500",
"time": 705,
"street_name": "4500"
},
{
"distance": 92.066,
"sign": -7,
"interval": [
106,
107
],
"text": "Keep left onto 4541",
"time": 3682,
"street_name": "4541"
},
{
"distance": 2279.316,
"sign": -7,
"interval": [
107,
137
],
"text": "Keep left onto 4541",
"time": 91165,
"street_name": "4541"
},
{
"distance": 1282.242,
"sign": 7,
"interval": [
137,
150
],
"text": "Keep right onto 4541",
"time": 51283,
"street_name": "4541"
},
{
"distance": 7494.544,
"sign": 0,
"interval": [
150,
207
],
"text": "Continue onto 4540",
"time": 299775,
"street_name": "4540"
},
{
"distance": 2435.471,
"sign": 7,
"interval": [
207,
234
],
"text": "Keep right onto 4540",
"time": 97417,
"street_name": "4540"
},
{
"distance": 0,
"sign": 4,
"last_heading": 216.21135357056747,
"interval": [
234,
234
],
"text": "Arrive at destination",
"time": 0,
"street_name": ""
}
],
"legs": [],
"details": {},
"ascend": 0,
"descend": 0,
"snapped_waypoints": ""
}],
"map_matching": {
"original_distance": 37097.25613455281,
"distance": 40117.718365362096,
"time": 1442072,
"original_time": 5727000
}
}
Graphhopper Routig Detail-Ansicht-Video
./mov/2019-07-22_12-15-32.flv.webm

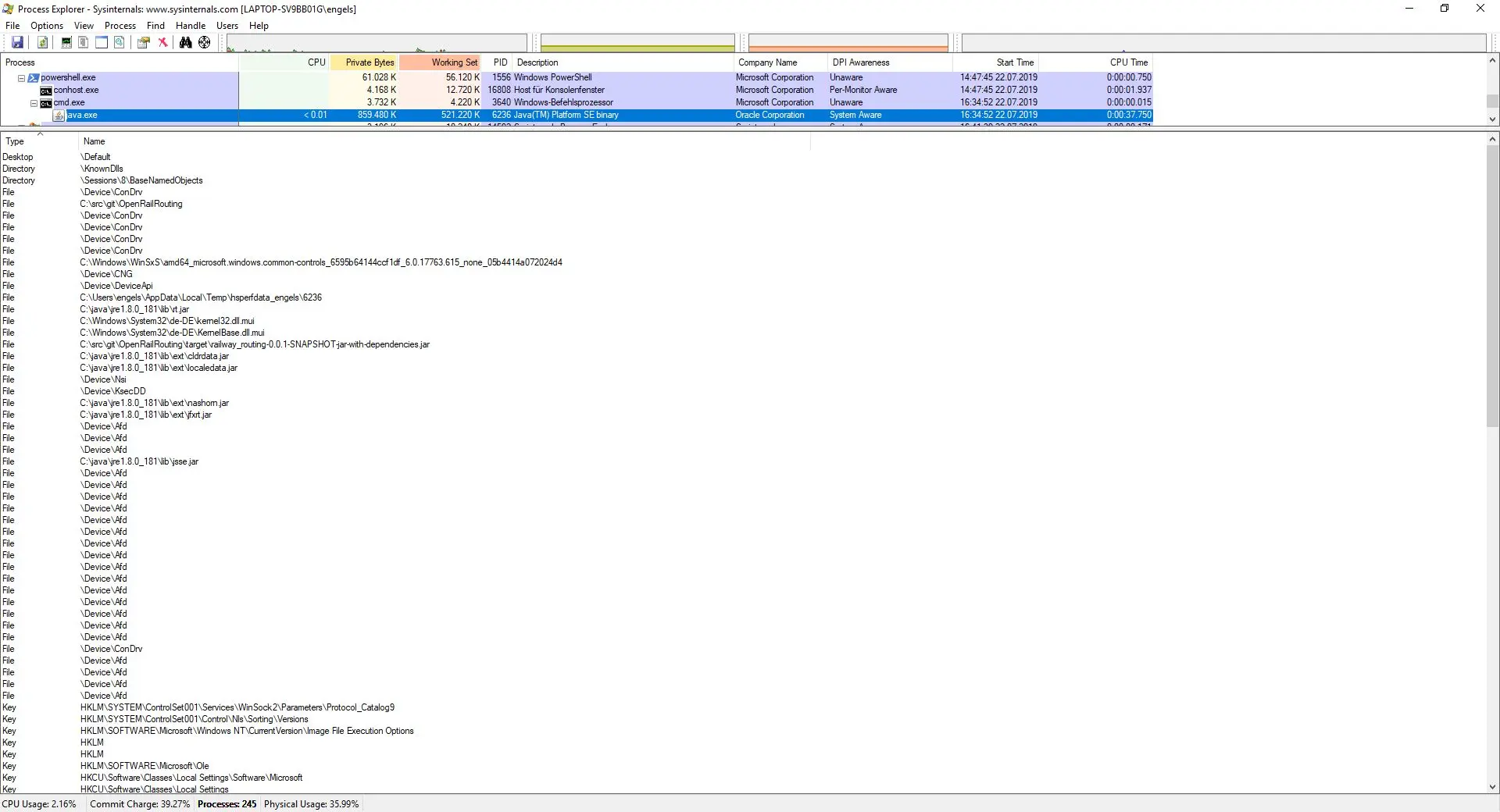

Speicher Sysinternals bei Map mit Europa

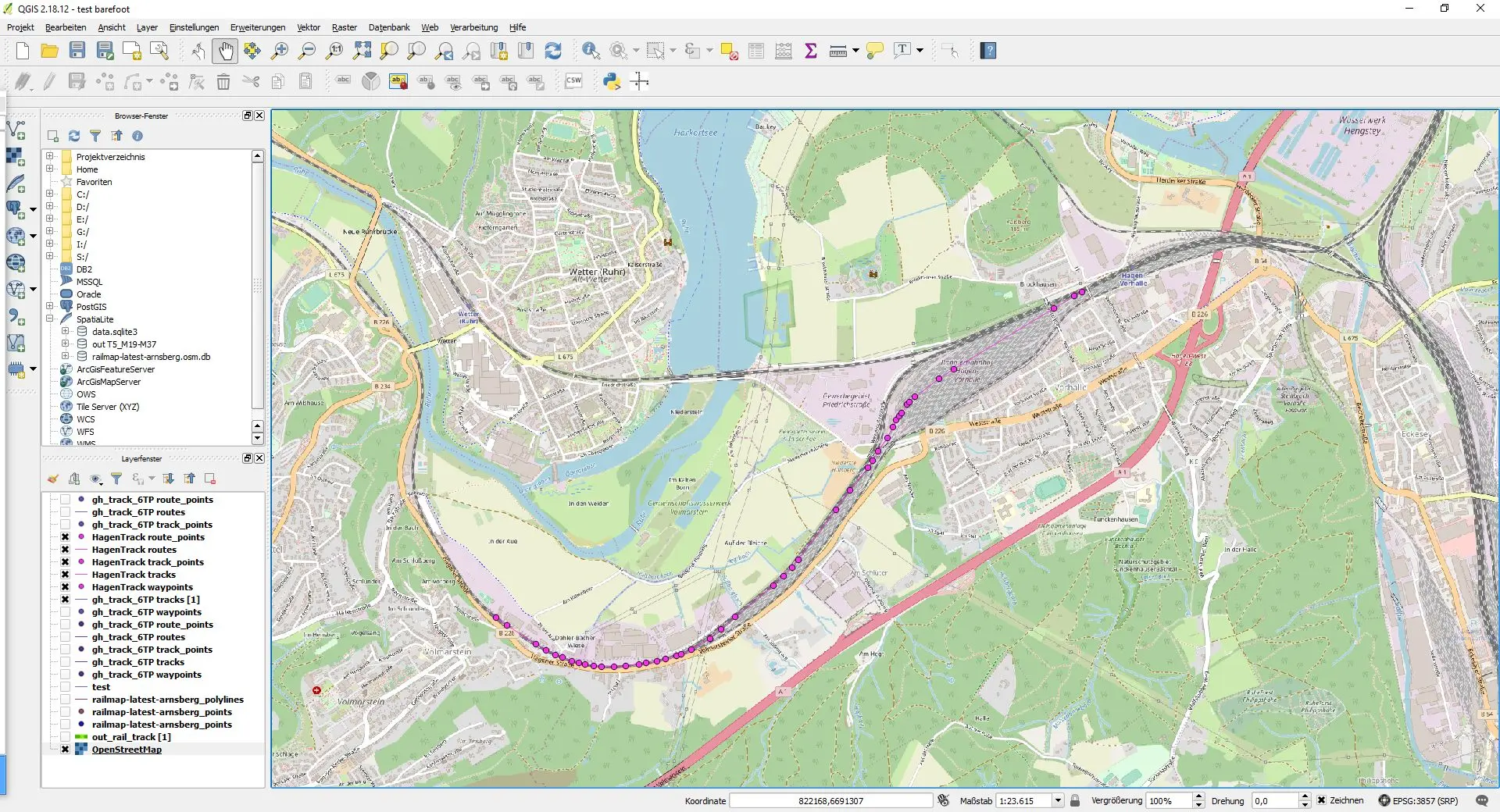

Berechnung Ergebnis des GH Rail Map Matchings
Ulm GPX-Track
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><gpx xmlns="http://www.topografix.com/GPX/1/1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" creator="Graphhopper version 0.11" version="1.1" xmlns:gh="https://graphhopper.com/public/schema/gpx/1.1">
<metadata><copyright author="OpenStreetMap contributors"/><link href="http://graphhopper.com"><text>GraphHopper GPX</text></link><time>2019-07-12T14:20:11Z</time></metadata>
<trk><name>GraphHopper Track</name><trkseg>
<trkpt lat="48.197411" lon="10.102224"><time>2019-07-12T14:20:11Z</time></trkpt>
<trkpt lat="48.294044" lon="10.076729"><time>2019-07-12T14:46:30Z</time></trkpt>
<trkpt lat="48.396915" lon="10.021243"><time>2019-07-12T15:15:50Z</time></trkpt>
<trkpt lat="48.397152" lon="10.020657"><time>2019-07-12T15:15:57Z</time></trkpt>
<trkpt lat="48.39737" lon="10.019981"><time>2019-07-12T15:16:05Z</time></trkpt>
<trkpt lat="48.405633" lon="9.831699"><time>2019-07-12T15:55:38Z</time></trkpt>
</trkseg>
</trk>
</gpx>

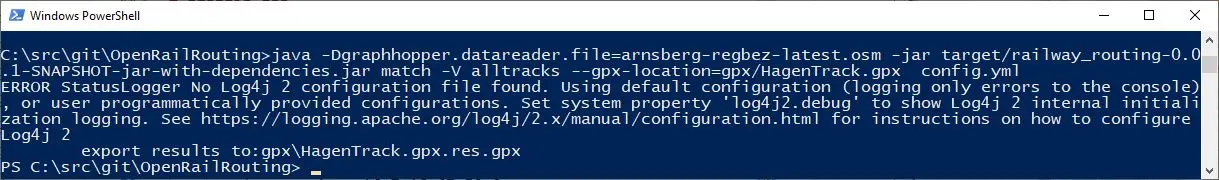

HagenTrack.gpx
<?xml version="1.0" encoding="UTF-8" standalone="no" ?><gpx xmlns="http://www.topografix.com/GPX/1/1" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" creator="Graphhopper version 0.11" version="1.1" xmlns:gh="https://graphhopper.com/public/schema/gpx/1.1">
<metadata><copyright author="OpenStreetMap contributors"/><link href="http://graphhopper.com"><text>GraphHopper GPX</text></link><time>2019-07-12T14:20:11Z</time></metadata>
<trk><name>GraphHopper Track</name><trkseg>
<trkpt lat="51.372406" lon="7.38792"><time>2019-07-12T14:20:11Z</time></trkpt>
<trkpt lat="51.382957" lon="7.41997"><time>2019-07-12T14:46:30Z</time></trkpt>
<trkpt lat="51.384111" lon="7.422672"><time>2019-07-12T15:15:50Z</time></trkpt>
<trkpt lat="51.386874" lon="7.43009"><time>2019-07-12T15:15:57Z</time></trkpt>
<trkpt lat="48.39737" lon="10.019981"><time>2019-07-12T15:16:05Z</time></trkpt>
<trkpt lat="51.389138" lon="7.438345"><time>2019-07-12T15:55:38Z</time></trkpt>
</trkseg>
</trk>
</gpx> # Ergebnis GPX in Qgis
Beispiel config.yml
Beispiel config für Rail
# encoder properties
flagEncoderProperties:
- name: tgv_all
electrified: contact_line
voltages: 15000;25000;1500;3000
frequencies: 16.7;16.67;50;0
gauges: 1435
maxspeed: 319
speedFactor: 11
- name: non_tgv
gauges: 1435
maxspeed: 120
speedFactor: 5
- name: alltracks
maxspeed: 120
speedFactor: 5
- name: allelectric
maxspeed: 140
speedFactor: 5
electrified: contact_line,yes
graphhopper:
# OpenStreetMap input file
# datareader.file: some.pbf
##### Vehicles #####
# Possible options: car,foot,bike,bike2,mtb,racingbike,motorcycle (comma separated)
# bike2 takes elevation data into account (like up-hill is slower than down-hill) and requires enabling graph.elevation.provider below
# This property must not be set for railway routing. Use graphhopper.profiles instead
# graph.flag_encoders: car
profiles: alltracks,allelectric
# Enable turn restrictions for car or motorcycle.
# graph.flag_encoders: car|turn_costs=true
##### Elevation #####
# To populate your graph with elevation data use SRTM, default is noop (no elevation)
# graph.elevation.provider: srtm
# default location for cache is /tmp/srtm
# graph.elevation.cache_dir: ./srtmprovider/
# If you have a slow disk or plenty of RAM change the default MMAP to:
# graph.elevation.dataaccess: RAM_STORE
#### Speed, hybrid and flexible mode ####
# By default the speed mode with the 'fastest' weighting is used. Internally a graph preparation via
# contraction hierarchies (CH) is done to speed routing up. This requires more RAM/disc space for holding the
# graph but less for every request. You can also setup multiple weightings, by providing a comma separated list.
# prepare.ch.weightings: fastest
# Disable the speed mode. Should be used only with routing.max_visited_nodes or when the hybrid mode is enabled instead
prepare.ch.weightings: no
# To make CH preparation faster for multiple flagEncoders you can increase the default threads if you have enough RAM.
# Change this setting only if you know what you are doing and if the default worked for you.
# prepare.ch.threads: 1
# The hybrid mode can be enabled with
# prepare.lm.weightings: fastest
# To tune the performance vs. memory usage for the hybrid mode use
# prepare.lm.landmarks: 16
# Make landmark preparation parallel if you have enough RAM. Change this only if you know what you are doing and if the default worked for you.
# prepare.lm.threads: 1
# avoid being stuck in a (oneway) subnetwork, see https://discuss.graphhopper.com/t/93
#prepare.min_network_size: 200
#prepare.min_one_way_network_size: 200
##### Routing #####
# You can define the maximum visited nodes when routing. This may result in not found connections if there is no
# connection between two points within the given visited nodes. The default is Integer.MAX_VALUE. Useful for flexibility mode
# routing.max_visited_nodes: 1000000
# If enabled, allows a user to run flexibility requests even if speed mode is enabled. Every request then has to include a hint routing.ch.disable=true.
# Attention, non-CH route calculations take way more time and resources, compared to CH routing.
# A possible attacker might exploit this to slow down your service. Only enable it if you need it and with routing.maxVisitedNodes
# routing.ch.disabling_allowed: true
# If enabled, allows a user to run flexible mode requests even if the hybrid mode is enabled. Every such request then has to include a hint routing.lm.disable=true.
# routing.lm.disabling_allowed: true
# Control how many active landmarks are picked per default, this can improve query performance
# routing.lm.active_landmarks: 4
# You can limit the max distance between two consecutive waypoints of flexible routing requests to be less or equal
# the given distance in meter. Default is set to 1000km.
routing.non_ch.max_waypoint_distance: 1000000
##### Web #####
# if you want to support jsonp response type you need to add it explicitly here. By default it is disabled for stronger security.
# web.jsonp_allowed: true
##### Storage #####
# configure the memory access, use RAM_STORE for well equipped servers (default and recommended)
#graph.dataaccess: RAM_STORE
# will write way names in the preferred language (language code as defined in ISO 639-1 or ISO 639-2):
# datareader.preferred_language: en
# Sort the graph after import to make requests roughly ~10% faster. Note that this requires significantly more RAM on import.
# graph.do_sort: true
##### Spatial Rules #####
# Spatial Rules require some configuration and only work with the DataFlagEncoder.
# Spatial Rules require you to provide Polygons in which the rules are enforced
# The line below contains the default location for these rules
# spatial_rules.location: core/files/spatialrules/countries.geo.json
# You can define the maximum BBox for which spatial rules are loaded.
# You might want to do this if you are only importing a small area and don't need rules for other countries.
# Having less rules, might result in a smaller graph. The line below contains the world-wide bounding box, uncomment and adapt to your need.
# spatial_rules.max_bbox: -180,180,-90,90
# Uncomment the following to point /maps to the source directory in the filesystem instead of
# the Java resource path. Helpful for development of the web client.
# Assumes that the web module is the working directory.
#
assets:
overrides:
/maps: src/main/resources/assets/
/map-matching: src/main/resources/map-matching-frontend/
# Dropwizard server configuration
server:
applicationConnectors:
- type: http
port: 8989
# for security reasons bind to localhost
bindHost: localhost
requestLog:
appenders: []
adminConnectors:
- type: http
port: 8990
bindHost: localhost
Log4j2.yaml
Configuration:
status: warn
name: YAMLConfigTest
properties:
property:
name: filename
value: target/test-yaml.log
thresholdFilter:
level: debug
appenders:
Console:
name: STDOUT
PatternLayout:
Pattern: "%m%n"
File:
name: File
fileName: ${filename}
PatternLayout:
Pattern: "%d %p %C{1.} [%t] %m%n"
Filters:
ThresholdFilter:
level: error
Loggers:
logger:
-
name: org.apache.logging.log4j.test1
level: debug
additivity: false
ThreadContextMapFilter:
KeyValuePair:
key: test
value: 123
AppenderRef:
ref: STDOUT
-
name: StatusLogger
level: debug
additivity: false
AppenderRef:
ref: File
Root:
level: error
AppenderRef:
ref: STDOUT
Shell Notizen Rail
java -Xmx2500m -Xms50m -Dgraphhopper.datareader.file=railmap-latest-arnsberg.osm -Dgraphhopper.profiles=freight_diesel -jar .\target\railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar import
java -Xmx2500m -Xms50m -Dgraphhopper.prepare.ch.weightings=no -Dgraphhopper.datareader.file=railmap-latest-arnsberg.osm -Dgraphhopper.profiles=freight_diesel -jar .\target\railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar
java -Dgraphhopper.datareader.file=ulm.osm -jar target/railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar match -V alltracks --gpx-location=gpx/gh_track_6TP.gpx config.yml
history babun
1 ls -al
2 cd /cygdrive/c/src/WasteRoute
3 dir
4 cd graphhopper
5 ./graphhopper.sh -a web -i ../osm/nordrhein-westfalen-latest.osm.pbf
6 export JAVA_OPTS="-Xmx1g -Xms1g"
7 ./graphhopper.sh -a web -i ../osm/nordrhein-westfalen-latest.osm.pbf
8 exit
9 cd /cygdrive/c/src/WasteRoute
10 dir
11 ls -la
12 cd graphhopper
13 dir
14 ls -la
15 ./graphhopper.sh -a web -i ../osm/out.pbf
16 ./graphhopper.sh
17 ./graphhopper.sh -p car -a web -i ../osm/out.pbf
18 ./graphhopper.sh -a build
19 ./graphhopper.sh -p car -a web -i ../osm/out.pbf -c config.yml
20 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml
21 ./graphhopper.sh -a web -i ../osm/out.pbf -c config-example.yml
22 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml
23 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car,foot
24 ./graphhopper.sh
25 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
26 cd /cygdrive/c/src
27 cd WasteRoute/graphhopper
28 dir
29 ls -al
30 5555ls Kein 398 May 15 12:43 .project
31 drwxr-xr-x 1 engels Kein 0 May 15 12:45 .settings
32 -rw-r--r-- 1 engels Kein 2657 May 15 12:42 .travis.yml
33 drwxr-xr-x 1 engels Kein 0 May 15 12:42 android
34 -rw-r--r-- 1 engels Kein 1027 May 15 12:42 appveyor.yml
35 drwxr-xr-x 1 engels Kein 0 May 15 12:45 client-hc
36 -rw-r--r-- 1 engels Kein 5617 May 15 20:01 config.yml
37 -rw-r--r-- 1 engels Kein 5498 May 15 19:10 config-example.yml
38 -rw-r--r-- 1 engels Kein 2952 May 15 12:42 CONTRIBUTORS.md
39 drwxr-xr-x 1 engels Kein 0 May 15 12:45 core
40 -rw-r--r-- 1 engels Kein 396 May 15 12:42 Dockerfile
41 drwxr-xr-x 1 engels Kein 0 May 15 12:42 docs
42 drwxr-xr-x 1 engels Kein 0 May 15 19:23 graph-cache
43 -rwxr-xr-x 1 engels Kein 10733 May 15 12:42 graphhopper.sh
44 drwxr-xr-x 1 engels Kein 0 May 15 12:45 isochrone
45 -rw-r--r-- 1 engels Kein 11562 May 15 12:42 LICENSE.txt
46 drwxr-xr-x 1 engels Kein 0 Apr 3 2017 maven
47 -rw-r--r-- 1 engels Kein 2602 May 15 12:42 NOTICE.md
48 -rw-r--r-- 1 engels Kein 14765 May 15 12:42 pom.xml
49 drwxr-xr-x 1 engels Kein 0 May 15 12:45 reader-gtfs
50 drwxr-xr-x 1 engels Kein 0 May 15 12:45 reader-json
51 drwxr-xr-x 1 engels Kein 0 May 15 12:45 reader-osm
52 drwxr-xr-x 1 engels Kein 0 May 15 12:45 reader-shp
53 -rw-r--r-- 1 engels Kein 11504 May 15 12:42 README.md
54 dir
55 \n
56 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
57 exit
58 _ifconfig
59 ?
60 help
61 exit
62 cd /cygdrive/c/src/WasteRoute/graphhopper
63 \n\n
64 dir
65 \n
66 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
67 exit
68 cd /cygdrive/c/src/WasteRoute/graphhopper
69 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
70 cd /cygdrive/c/src/WasteRoute/elog-uml/WS/umlGeneratorEvaluator/out
71 dir
72 cat
73 cat *
74 cat * |grep 8989
75 cat * |grep :8989
76 cat * |grep :8989>ghUrls.txt
77 exit
78 cd /cygdrive/c/src/WasteRoute/graphhopper
79 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
80 exit
81 cd /cygdrive/c/src/WasteRoute/graphhopper
82 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
83 exit
84 cd /cygdrive/c/src/WasteRoute/graphhopper
85 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
86 exit
87 cd /cygdrive/c/src/WasteRoute/graphhopper
88 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
89 exit
90 cd /cygdrive/c/src/WasteRoute/graphhopper
91 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
92 exit
93 cd /cygdrive/c/src/WasteRoute/
94 cxd railway_routing
95 cd railway_routing
96 ./build.sh
97 cd ..
98 cd railservice
99 cd hopper
100 cd railway_routing
101 git submodule init
102 bash
103 pwd
104 bash build.sh
105 pact
106 pact install mvn
107 bash build.sh
108 mvn
109 pact install maven
110 exit
111 ls
112 ps
113 ps-al
114 ps -al
115 ps -alx
116 ps -ap
117 ps -h
118 ps -f
119 top
120 ntopp
121 ntop
122 dir
123 ?
124 help
125 sc
126 ?
127 help
128 cd railway_routing
129 fc
130 cd railway_routing
131 help
132 fc
133 help
134 dir
135 ls -al
136 more .babunrc
137 java
138 java -v
139 java -version
140 exit
141 ls
142 ls -al
143 ls -l &
144 bg
145 fg
146 ps
147 ps -W
148 ps -W|more
149 jobs
150 jobs --help
151 jobs -h
152 jobs /?
153 edit
154 write
155 ps -W
156 ps -W|grep write
157 ps -W
158 fg 39304
159 exit
160 cd /cygdrive/c/src/WasteRoute/graphhopper
161 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
162 exit
163 cd /cygdrive/c/src/railservice
164 cd hopper
165 cd railway_routing
166 ./build.sh
167 exit
168 cd /cygdrive/c/src/WasteRoute/graphhopper
169 dir
170 chmod +x babunStartHopper.sh
171 dir
172 .
173 mc
174 ./graphhopper.sh
175 mc
176 ./babunStartHopper.sh
177 exit
178 cd /cygdrive/c/src/WasteRoute/graphhopper
179 dire
180 dir
181 ls -la
182 ./babunStartHopper.sh
183 /cygdrive/c/src/WasteRoute/graphhopper/babunStartHopper.sh
184 cd /cygdrive/c/src/WasteRoute/graphhopper
185 ./babunStartHopper.sh
186 exit
187 cd /cygdrive/c/src
188 cd WasteRoute/graphhopper
189 ./babunStartHopperNRW.sh
190 exit
191 cd /cygdrive/c/src/WasteRoute
192 graphhopper/babunStartHopperNRW.sh
193 cd graphhopper
194 ./babunStartHopperNRW.sh
195 exit
196 cd /cygdrive/c/src/WasteRoute/graphhopper
197 dir
198 ./babunStartHopperNRW.sh
199 exit
200 pwd
201 cd /cygdrive/c/src/WasteRoute/graphhopper
202 ./babunStartHopperNRW.sh
203 ./babunStartHopper.sh
204 ./babunStartHopperNRW.sh
205 exit
206 gcc
207 fcc -?
208 gcc /?
209 gcc -?
210 gcc -help
211 gcc --help
212 gcc -v
213 gcc --version
214 exit
215 python
216 pwd
217 dir
218 ls -al
219 python hello.py
220 whereis python
221 python3
222 python
223 python3
224 py
225 py --help
226 py hello.py
227 whereis py
228 py hello.py
229 dir
230 chmod +x hello.py
231 dir
232 ls - al
233 ls -l
234 ls -la
235 ls -l
236 ./hello.py
237 whereis py
238 whereis python
239 ./hello.py
240 cat hello.py
241 ./hello.py
242 py
243 python
244 python3
245 py3
246 py
247 exit
248 exiz
249 exit
250 fg 1
251 fg
252 ext
253 exit
254 ls
255 dir
256 cd bin
257 dir
258 cd ..
259 cat hello.py
260 py
261 py -?
262 rm hello.py
263 pwd
264 cd /cygdrive/c/src/WasteRoute
265 cd graphhopper
266 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
267 exit
268 dir
269 ls
270 ls -al
271 cd bin
272 ls -al
273 top
274 lsof -i
275 dir
276 cd graphhopper
277 cd /cygdrive/c/src/WasteRoute
278 cd graphhopper
279 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
280 exit
281 dir
282 ls -al
283 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
284 cd graphhopper
285 cd /cygdrive/c/src/WasteRoute
286 cd graphhopper
287 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
288 exit
289 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
290 cd graphhopper
291 cd /cygdrive/c/src/WasteRoute
292 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
293 cd graphhopper
294 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
295 exit
296 cd graphhopper
297 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
298 pwd
299 cd /cygdrive/c/src/WasteRoute
300 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
301 cd graphhopper
302 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
303 exit
304 cd graphhopper
305 cd /cygdrive/c/src/WasteRoute
306 cd graphhopper
307 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
308 exit
309 ls
310 ls -al
311 cd /cygdrive/c/src/WasteRoute
312 ls -al
313 cd /cygdrive/c
314 ls -al
315 babun --version
316 cd ~
317 /
318 exit
319 babun --version
320 cd /cygdrive/c/src/WasteRoute
321 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
322 cd graphhopper
323 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
324 exit
325 cd /cygdrive/c/src/WasteRoute
326 cd graphhopper
327 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
328 exit
329 cd /cygdrive/c/src/WasteRoute
330 cd graphhopper
331 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
332 exit
333 cd /cygdrive/c/src/WasteRoute
334 cd graphhopper
335 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
336 ./graphhopper.sh -a web -i ../osm/nordrhein-westfalen-latest.osm.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
337 ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar
338 xit
339 exit
340 pwd
341 exit
342 cd /cygdrive/c/src/git/barefoot/map/tools/
343 cd..
344 cd ..
345 bash map/osm/import.sh
346 exit
347 cd /cygdrive/c/src/git/barefoot/map/tools/
348 /cygdrive/c/src/git/OpenRailRouting
349 dir
350 bash build.sh
351 ./build.sh
352 exit
353 history
Log import-rail-europe.sh
root@4fb439410119:/# bash /mnt/map/osm/import-rail-europe.sh
Start creation and initialization of database 'europe' ...
CREATE EXTENSION
CREATE EXTENSION
Done.
Start creation of user and initialization of credentials ...
CREATE ROLE
GRANT
Done.
Start population of OSM data (osmosis) ...
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:4: NOTICE: table "actions" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:5: NOTICE: table "users" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:6: NOTICE: table "nodes" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:7: NOTICE: table "ways" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:8: NOTICE: table "way_nodes" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:9: NOTICE: table "relations" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:10: NOTICE: table "relation_members" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:11: NOTICE: table "schema_info" does not exist, skipping
DROP TABLE
psql:/mnt/map/osm/pgsnapshot_schema_0.6.sql:14: NOTICE: function osmosisupdate() does not exist, skipping
DROP FUNCTION
CREATE TABLE
CREATE TABLE
CREATE TABLE
addgeometrycolumn
------------------------------------------------
public.nodes.geom SRID:4326 TYPE:POINT DIMS:2
(1 row)
CREATE TABLE
CREATE TABLE
CREATE TABLE
CREATE TABLE
INSERT 0 1
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
CREATE INDEX
CREATE INDEX
CREATE INDEX
ALTER TABLE
ALTER TABLE
ALTER TABLE
CREATE FUNCTION
CREATE FUNCTION
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
ALTER TABLE
Jul 25, 2019 11:58:16 AM org.openstreetmap.osmosis.core.Osmosis run
INFO: Osmosis Version 0.43.1-SNAPSHOT
Jul 25, 2019 11:58:16 AM org.openstreetmap.osmosis.core.Osmosis run
INFO: Preparing pipeline.
Jul 25, 2019 11:58:16 AM org.openstreetmap.osmosis.core.Osmosis run
INFO: Launching pipeline execution.
Jul 25, 2019 11:58:16 AM org.openstreetmap.osmosis.core.Osmosis run
INFO: Pipeline executing, waiting for completion.
Jul 25, 2019 2:17:37 PM org.openstreetmap.osmosis.core.Osmosis run
INFO: Pipeline complete.
Jul 25, 2019 2:17:37 PM org.openstreetmap.osmosis.core.Osmosis run
INFO: Total execution time: 8361760 milliseconds.
Done.
Start extraction of routing data (bfmap tools) ...
Execute in normal mode ...
(1/5) Create intermediate table _tmp_way_nodes ...
Done.
Create index on intermediate table _tmp_way_nodes ...
Done.
(2/5) Create intermediate table _tmp_node_counts ...
Done.
Create index on intermediate table _tmp_node_counts ...
Done.
(3/5) Create intermediate table _tmp_way_counts ...
Done.
Drop intermediate tables _tmp_way_nodes and _tmp_node_counts.
Done.
Create index on intermediate table _tmp_way_counts ...
Done.
(4/5) Create intermediate table _tmp_way_aggs ...
Done.
Drop intermediate table _tmp_way_counts.
Done.
Create index on intermediate table _tmp_way_aggs ...
Done.
(5/5) Create table temp_ways ...
Done.
Drop intermediate table _tmp_way_aggs.
Done.
Finished.
Configuration imported.
Table 'bfmap_ways' does not exist in database 'europe'.
Table 'bfmap_ways' has been created.
Inserting data ...
15376 segments from 10000 ways inserted.
30649 segments from 20000 ways inserted.
45955 segments from 30000 ways inserted.
61201 segments from 40000 ways inserted.
76559 segments from 50000 ways inserted.
91968 segments from 60000 ways inserted.
107304 segments from 70000 ways inserted.
122629 segments from 80000 ways inserted.
138092 segments from 90000 ways inserted.
153513 segments from 100000 ways inserted.
168541 segments from 110000 ways inserted.
183849 segments from 120000 ways inserted.
198796 segments from 130000 ways inserted.
213948 segments from 140000 ways inserted.
229666 segments from 150000 ways inserted.
245037 segments from 160000 ways inserted.
260517 segments from 170000 ways inserted.
275538 segments from 180000 ways inserted.
290709 segments from 190000 ways inserted.
306307 segments from 200000 ways inserted.
321250 segments from 210000 ways inserted.
336381 segments from 220000 ways inserted.
351521 segments from 230000 ways inserted.
366663 segments from 240000 ways inserted.
381783 segments from 250000 ways inserted.
397316 segments from 260000 ways inserted.
412728 segments from 270000 ways inserted.
427821 segments from 280000 ways inserted.
443212 segments from 290000 ways inserted.
458409 segments from 300000 ways inserted.
473993 segments from 310000 ways inserted.
489110 segments from 320000 ways inserted.
504483 segments from 330000 ways inserted.
519928 segments from 340000 ways inserted.
535105 segments from 350000 ways inserted.
550525 segments from 360000 ways inserted.
565823 segments from 370000 ways inserted.
581099 segments from 380000 ways inserted.
596301 segments from 390000 ways inserted.
611732 segments from 400000 ways inserted.
626835 segments from 410000 ways inserted.
641992 segments from 420000 ways inserted.
657484 segments from 430000 ways inserted.
672480 segments from 440000 ways inserted.
687725 segments from 450000 ways inserted.
703165 segments from 460000 ways inserted.
718248 segments from 470000 ways inserted.
733423 segments from 480000 ways inserted.
748551 segments from 490000 ways inserted.
763817 segments from 500000 ways inserted.
779067 segments from 510000 ways inserted.
794236 segments from 520000 ways inserted.
809583 segments from 530000 ways inserted.
824695 segments from 540000 ways inserted.
839873 segments from 550000 ways inserted.
855207 segments from 560000 ways inserted.
870420 segments from 570000 ways inserted.
885731 segments from 580000 ways inserted.
900723 segments from 590000 ways inserted.
916197 segments from 600000 ways inserted.
931534 segments from 610000 ways inserted.
946767 segments from 620000 ways inserted.
962012 segments from 630000 ways inserted.
977425 segments from 640000 ways inserted.
992880 segments from 650000 ways inserted.
1008067 segments from 660000 ways inserted.
1023215 segments from 670000 ways inserted.
1038317 segments from 680000 ways inserted.
1053589 segments from 690000 ways inserted.
1069008 segments from 700000 ways inserted.
1084450 segments from 710000 ways inserted.
1099633 segments from 720000 ways inserted.
1114935 segments from 730000 ways inserted.
1130197 segments from 740000 ways inserted.
1145434 segments from 750000 ways inserted.
1160609 segments from 760000 ways inserted.
1175955 segments from 770000 ways inserted.
1191070 segments from 780000 ways inserted.
1206548 segments from 790000 ways inserted.
1221465 segments from 800000 ways inserted.
1236697 segments from 810000 ways inserted.
1251905 segments from 820000 ways inserted.
1267391 segments from 830000 ways inserted.
1282657 segments from 840000 ways inserted.
1297842 segments from 850000 ways inserted.
1313233 segments from 860000 ways inserted.
1328444 segments from 870000 ways inserted.
1343549 segments from 880000 ways inserted.
1358922 segments from 890000 ways inserted.
1374066 segments from 900000 ways inserted.
1389457 segments from 910000 ways inserted.
1404580 segments from 920000 ways inserted.
1419832 segments from 930000 ways inserted.
1435229 segments from 940000 ways inserted.
1450248 segments from 950000 ways inserted.
1465768 segments from 960000 ways inserted.
1480924 segments from 970000 ways inserted.
1496218 segments from 980000 ways inserted.
1511482 segments from 990000 ways inserted.
1515438 segments from 992544 ways inserted.
1515438 segments from 992544 ways inserted and finished.
Done.
Done.
Graphhopper startup car Wasteroute
{ ~ } » cd /cygdrive/c/src/WasteRoute ~ 130
{ WasteRoute } » ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar /cygdrive/c/src/WasteRoute
zsh: no such file or directory: ./graphhopper.sh
{ WasteRoute } » cd graphhopper /cygdrive/c/src/WasteRoute 127
{ graphhopper } master » ./graphhopper.sh -a web -i ../osm/out.pbf -c config.yml -p car --jar web/target/graphhopper-web-0.11-SNAPSHOT.jar /cygdrive/c/src/WasteRoute/graphhopper
## using java 1.8.0_91 (64bit) from C:\java\jdk-8u91_x64
./graphhopper.sh: line 131: mvn: command not found
## using existing osm file ../osm/out.pbf
## existing jar found web/target/graphhopper-web-0.11-SNAPSHOT.jar
## now web. JAVA_OPTS=-Xms128m -Xmx256m
INFO [2020-05-08 08:28:52,573] org.eclipse.jetty.util.log: Logging initialized @1443ms to org.eclipse.jetty.util.log.Slf4jLog
INFO [2020-05-08 08:28:52,654] io.dropwizard.server.DefaultServerFactory: Registering jersey handler with root path prefix: /
INFO [2020-05-08 08:28:52,656] io.dropwizard.server.DefaultServerFactory: Registering admin handler with root path prefix: /
INFO [2020-05-08 08:28:52,918] io.dropwizard.bundles.assets.ConfiguredAssetsBundle: Registering ConfiguredAssetBundle with name: assets for path /maps/*
INFO [2020-05-08 08:28:52,927] io.dropwizard.server.ServerFactory: Starting GraphHopperApplication
_ _
__ _ _ __ __ _ _ __ | |__ | |__ ___ _ __ _ __ ___ _ __
/ _` | '__/ _` | '_ \| '_ \| '_ \ / _ \| '_ \| '_ \ / _ \ '__|
| (_| | | | (_| | |_) | | | | | | | (_) | |_) | |_) | __/ |
\__, |_| \__,_| .__/|_| |_|_| |_|\___/| .__/| .__/ \___|_|
|___/ |_| |_| |_|
INFO [2020-05-08 08:28:52,996] org.eclipse.jetty.setuid.SetUIDListener: Opened application@19382338{HTTP/1.1,[http/1.1]}{localhost:8989}
INFO [2020-05-08 08:28:52,996] org.eclipse.jetty.setuid.SetUIDListener: Opened admin@66420549{HTTP/1.1,[http/1.1]}{localhost:8990}
INFO [2020-05-08 08:28:52,998] org.eclipse.jetty.server.Server: jetty-9.4.z-SNAPSHOT
INFO [2020-05-08 08:28:53,158] com.graphhopper.reader.osm.GraphHopperOSM: version 0.11|2018-05-15T16:17:53Z (5,14,4,3,3,2)
INFO [2020-05-08 08:28:53,161] com.graphhopper.reader.osm.GraphHopperOSM: graph CH|car|RAM_STORE|2D|NoExt|5,14,4,3,3, details:edges:422▒755(13MB), nodes:334▒899(4MB), name:(2MB), geo:1▒528▒365(6MB), bounds:7.350001462176475,8.909999778345222,51.95000064261259,53.099999459832894, CHGraph|fastest|car, shortcuts:283▒144, nodesCH:(3MB)
INFO [2020-05-08 08:28:53,161] com.graphhopper.http.GraphHopperManaged: loaded graph at:../osm/out-gh, data_reader_file:../osm/out.pbf, flag_encoders:car, edges:422▒755(13MB), nodes:334▒899(4MB), name:(2MB), geo:1▒528▒365(6MB), bounds:7.350001462176475,8.909999778345222,51.95000064261259,53.099999459832894, CHGraph|fastest|car, shortcuts:283▒144, nodesCH:(3MB)
INFO [2020-05-08 08:28:53,711] io.dropwizard.jersey.DropwizardResourceConfig: The following paths were found for the configured resources:
GET / (com.graphhopper.http.resources.RootResource)
GET /i18n (com.graphhopper.http.resources.I18NResource)
GET /i18n/{locale} (com.graphhopper.http.resources.I18NResource)
GET /info (com.graphhopper.http.resources.InfoResource)
GET /isochrone (com.graphhopper.http.resources.IsochroneResource)
GET /nearest (com.graphhopper.http.resources.NearestResource)
GET /route (com.graphhopper.http.resources.RouteResource)
INFO [2020-05-08 08:28:53,713] org.eclipse.jetty.server.handler.ContextHandler: Started i.d.j.MutableServletContextHandler@7645f03e{/,null,AVAILABLE}
INFO [2020-05-08 08:28:53,718] io.dropwizard.setup.AdminEnvironment: tasks =
POST /tasks/log-level (io.dropwizard.servlets.tasks.LogConfigurationTask)
POST /tasks/gc (io.dropwizard.servlets.tasks.GarbageCollectionTask)
INFO [2020-05-08 08:28:53,724] org.eclipse.jetty.server.handler.ContextHandler: Started i.d.j.MutableServletContextHandler@1624775{/,null,AVAILABLE}
INFO [2020-05-08 08:28:53,750] org.eclipse.jetty.server.AbstractConnector: Started application@19382338{HTTP/1.1,[http/1.1]}{localhost:8989}
INFO [2020-05-08 08:28:53,751] org.eclipse.jetty.server.AbstractConnector: Started admin@66420549{HTTP/1.1,[http/1.1]}{localhost:8990}
INFO [2020-05-08 08:28:53,752] org.eclipse.jetty.server.Server: Started @2623ms
Values for CAR -> Truck - Excoder - Parameter
CarFlagEncoder.java
...
maxPossibleSpeed = 140;
// autobahn
defaultSpeedMap.put("motorway", 100);
defaultSpeedMap.put("motorway_link", 70);
defaultSpeedMap.put("motorroad", 90);
// bundesstraße
defaultSpeedMap.put("trunk", 70);
defaultSpeedMap.put("trunk_link", 65);
// linking bigger town
defaultSpeedMap.put("primary", 65);
defaultSpeedMap.put("primary_link", 60);
// linking towns + villages
defaultSpeedMap.put("secondary", 60);
defaultSpeedMap.put("secondary_link", 50);
// streets without middle line separation
defaultSpeedMap.put("tertiary", 50);
defaultSpeedMap.put("tertiary_link", 40);
defaultSpeedMap.put("unclassified", 30);
defaultSpeedMap.put("residential", 30);
// spielstraße
defaultSpeedMap.put("living_street", 5);
defaultSpeedMap.put("service", 20);
// unknown road
defaultSpeedMap.put("road", 20);
// forestry stuff
defaultSpeedMap.put("track", 15);
...
Railflag encoder Java
package com.graphhopper.routing.util;
import com.graphhopper.util.PMap;
import com.graphhopper.reader.ReaderNode;
import com.graphhopper.reader.ReaderRelation;
import com.graphhopper.reader.ReaderWay;
import com.graphhopper.routing.util.AbstractFlagEncoder;
import com.graphhopper.routing.util.EncodedDoubleValue;
public class RailFlagEncoder extends AbstractFlagEncoder {
public RailFlagEncoder(PMap properties) {
super(5, 5, 0);
this.properties = properties;
intendedValues.add("railway");
intendedValues.add("train");
}
@Override
public long acceptWay( ReaderWay way )
{
String railwayValue = way.getTag("railway");
if (railwayValue == null)
{
if(way.hasTag("route", intendedValues)) {
return acceptBit | ferryBit;
}
return 0;
}
if (!"rail".equals(railwayValue))
{
return 0;
}
return acceptBit;
}
@Override
public long handleRelationTags( ReaderRelation relation, long oldRelationFlags )
{
return oldRelationFlags;
}
@Override
public String toString()
{
return "rail";
}
protected double getSpeed( ReaderWay way )
{
/*String railwayValue = way.getTag("railway");
Integer speed = 100;
if (speed == null)
throw new IllegalStateException("rail, no speed found for:" + railwayValue);*/
return 100;
}
@Override
public long handleNodeTags( ReaderNode node )
{
return 0;
}
@Override
public long handleWayTags( ReaderWay way, long allowed, long relationCode )
{
if (!isAccept(allowed))
return 0;
long flags = 0;
if (!isFerry(allowed)) {
// get assumed speed from highway type
double speed = getSpeed(way);
speed = applyMaxSpeed(way, speed);
flags = setSpeed(0, speed);
if (way.hasTag("oneway", oneways) || way.hasTag("junction", "roundabout")) {
if (way.hasTag("oneway", "-1"))
flags |= backwardBit;
else
flags |= forwardBit;
} else
flags |= directionBitMask;
} else {
double ferrySpeed = getFerrySpeed(way, 20, 20, 20);
flags = setSpeed(flags, ferrySpeed);
flags |= directionBitMask;
}
return flags;
}
@Override
public int defineWayBits( int index, int shift )
{
// first two bits are reserved for route handling in superclass
shift = super.defineWayBits(index, shift);
speedEncoder = new EncodedDoubleValue("Speed", shift, speedBits, speedFactor, 100, 100);
return shift + speedBits;
}
@Override
public int getVersion() {
return 1;
}
}
GRaphhopper CAR URL List
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5837221.0,6929465.0&point=5837221.0,6929465.0&point=5837221.0,6929465.0&point=5837221.0,6929465.0&point=5835986.0,6928015.0&point=5835986.0,6928015.0&point=5834408.0,6926469.0&point=5834408.0,6926469.0&point=5834408.0,6926469.0&point=5834408.0,6926469.0&point=5834408.0,6926469.0&point=5832939.0,6925869.0&point=5832939.0,6925869.0&point=5832428.0,6925513.0&point=5832428.0,6925513.0&point=5832428.0,6925513.0&point=5830698.0,6926418.0&point=5830698.0,6926418.0&point=5830698.0,6926418.0&point=5830698.0,6926418.0&point=5828947.0,6925610.0&point=5828947.0,6925610.0&point=5832311.0,6922396.0&point=5832337.0,6919288.0&point=5832747.0,6920348.0&point=5833880.0,6920148.0&point=5834402.0,6921183.0&point=5837007.0,6921005.0&point=5840348.0,6920026.0&point=5842268.0,6919490.0&point=5843356.0,6919113.0&point=5843356.0,6919113.0&point=5848629.0,6924914.0&point=5848848.0,6926501.0&point=5848848.0,6926501.0&point=5848848.0,6926501.0&point=5847322.0,6932655.0&point=5847322.0,6932655.0&point=5847322.0,6932655.0&point=5847322.0,6932655.0&point=5847322.0,6932655.0&point=5843922.0,6932285.0&point=5843922.0,6932285.0&point=5839753.0,6934358.0&point=5839753.0,6934358.0&point=5839594.0,6934340.0&point=5839044.0,6934836.0&point=5838995.0,6948963.0&point=5837870.0,6950001.0&point=5837675.0,7002789.0&point=5883400.0,7011917.0&point=5899356.0,7035619.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5901217.0,7042953.0&point=5898274.74,7039924.87&point=5897847.78,7039827.13&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897545.19,7038886.33&point=5897408.33,7038852.73&point=5897408.33,7038852.73&point=5897211.65,7040361.48&point=5894634.47,7039572.42&point=5894699.0,7039324.0&point=5892844.0,7032115.0&point=5890067.0,6985736.0&point=5889512.0,6982318.0&point=5874372.0,6979626.0&point=5872333.0,6938631.0&point=5862305.0,6939620.0&point=5849405.0,6940789.0&point=5849405.0,6940789.0&point=5849405.0,6940789.0&point=5849405.0,6940789.0&point=5849405.0,6940789.0&point=5849405.0,6940789.0&point=5847947.0,6936278.0&point=5842732.0,6933812.0&point=5842518.0,6931578.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5833115.0,6932527.0&point=5832295.0,6932876.0&point=5831800.0,6936749.0&point=5825071.0,6936967.0&point=5825071.0,6936967.0&point=5825071.0,6936967.0&point=5825071.0,6936967.0&point=5826182.0,6935145.0&point=5826290.0,6934792.0&point=5824479.0,6934918.0&point=5824140.0,6930944.0&point=5824140.0,6930944.0&point=5824140.0,6930944.0&point=5824140.0,6930944.0&point=5824140.0,6930944.0&point=5824140.0,6930944.0&point=5824182.0,6929064.0&point=5824099.0,6927268.0&point=5822967.0,6927457.0&point=5822967.0,6927457.0&point=5822967.0,6927457.0&point=5823943.0,6927899.0&point=5825415.0,6927910.0&point=5826251.0,6925812.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5826917.0,6927663.0&point=5827161.0,6928539.0&point=5829559.0,6929448.0&point=5829559.0,6929448.0&point=5830994.0,6929050.0&point=5831516.0,6929052.0&point=5836821.0,6930031.0&point=5837863.0,6932657.0&point=5837863.0,6932657.0&point=5837863.0,6932657.0&point=5838169.0,6932649.0&point=5838169.0,6932649.0&point=5838169.0,6932649.0&point=5838169.0,6932649.0&point=5836551.0,6931818.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5831351.0,6927826.0&point=5831388.0,6928205.0&point=5831572.0,6929609.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5842248.0,6937654.0&point=5842248.0,6937654.0&point=5842248.0,6937654.0&point=5842816.0,6924613.0&point=5843322.0,6924067.0&point=5844284.0,6924322.0&point=5844288.0,6924722.0&point=5848629.0,6924914.0&point=5851216.0,6931644.0&point=5851216.0,6931644.0&point=5851216.0,6931644.0&point=5848985.0,6933276.0&point=5848511.0,6933491.0&point=5848511.0,6933491.0&point=5848511.0,6933491.0&point=5848511.0,6933491.0&point=5848511.0,6933491.0&point=5848511.0,6933491.0&point=5848511.0,6933491.0&point=5848904.0,6933907.0&point=5848875.0,6934016.0&point=5849396.0,6947038.0&point=5851933.0,6971830.0&point=5852497.0,6978257.0&point=5852497.0,6978257.0&point=5853872.0,6984798.0&point=5864723.0,6985926.0&point=5883957.84,7052574.82&point=5884135.26,7052566.85&point=5884507.25,7052768.66&point=5887119.36,7053075.65&point=5887865.0,7053829.0&point=5887865.0,7053829.0&point=5888010.0,7053826.0&point=5888030.0,7053803.0&point=5888010.0,7053826.0&point=5888010.0,7053826.0&point=5890302.0,7054281.0&point=5890302.0,7054281.0&point=5890302.0,7054281.0&point=5891685.56,7053850.79&point=5891829.21,7053789.5&point=5891829.21,7053789.5&point=5893326.27,7053625.3&point=5894361.0,7052789.0&point=5895144.75,7040971.0&point=5897102.23,7040490.77&point=5897545.19,7038886.33&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5893565.0,7032992.0&point=5893399.26,7032482.86&point=5892714.84,7032020.22&point=5883400.0,7011917.0&point=5875753.77,7009883.23&point=5875753.77,7009883.23&point=5876906.0,6997545.0&point=5876906.0,6997545.0&point=5876906.0,6997545.0&point=5876906.0,6997545.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5868939.0,6978438.0&point=5868359.94,6963833.2&point=5867057.0,6963380.0&point=5849396.0,6947038.0&point=5842856.0,6940923.0&point=5841546.0,6938932.0&point=5841364.0,6937977.0&point=5840264.0,6938241.0&point=5837042.0,6935446.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5842268.0,6919490.0&point=5842268.0,6919490.0&point=5843356.0,6919113.0&point=5845076.0,6918630.0&point=5845589.0,6918488.0&point=5853879.0,6918342.0&point=5853879.0,6918342.0&point=5853879.0,6918342.0&point=5853879.0,6918342.0&point=5853879.0,6918342.0&point=5853879.0,6918342.0&point=5853879.0,6918342.0&point=5854374.0,6918320.0&point=5859660.0,6918489.0&point=5863126.0,6923561.0&point=5862073.0,6933947.0&point=5862365.0,6934194.0&point=5855856.0,6934621.0&point=5853052.0,6934864.0&point=5849396.0,6947038.0&point=5838995.0,6948963.0&point=5838995.0,6948963.0&point=5838995.0,6948963.0&point=5838995.0,6948963.0&point=5838995.0,6948963.0&point=5838995.0,6948963.0&point=5838310.0,6949133.0&point=5838310.0,6949133.0&point=5838310.0,6949133.0&point=5838310.0,6949133.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5837870.0,6950001.0&point=5843277.0,6954680.0&point=5844378.0,6979000.0&point=5844378.0,6979000.0&point=5845383.0,6979634.0&point=5846626.0,6981331.0&point=5846626.0,6981331.0&point=5846838.0,6982481.0&point=5846838.0,6982481.0&point=5848294.0,6982527.0&point=5863410.0,6984082.0&point=5864959.0,6984079.0&point=5883016.0,6995388.0&point=5883957.84,7052574.82&point=5887210.74,7053012.13&point=5892822.16,7053341.05&point=5893281.0,7038934.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5897108.0,7038875.0&point=5896987.09,7039336.59&point=5895828.75,7040688.75&point=5895135.5,7040971.75&point=5894682.0,7041045.0&point=5891834.0,7045583.0&point=5891834.0,7045583.0&point=5887201.55,7051911.08&point=5887201.55,7051911.08&point=5887201.55,7051911.08&point=5887201.55,7051911.08&point=5887119.36,7053075.65&point=5887251.32,7052972.23&point=5887251.32,7052972.23&point=5887251.32,7052972.23&point=5887484.0,7052805.0&point=5887676.0,7052700.0&point=5893077.58,7052969.48&point=5894481.91,7052907.38&point=5894929.75,7042102.75&point=5895144.75,7040971.0&point=5895253.88,7040040.75&point=5896023.04,7038732.29&point=5898913.0,7037169.0&point=5899356.0,7035619.0&point=5899487.0,7001688.0&point=5900286.0,6987805.0&point=5900265.0,6987777.0&point=5900264.0,6987748.0&point=5900262.0,6987720.0&point=5889431.0,6984130.0&point=5863797.0,6978907.0&point=5862564.0,6979053.0&point=5859031.0,6969968.0&point=5859008.0,6969433.0&point=5858825.0,6967452.0&point=5857186.0,6967405.0&point=5849644.0,6949808.0&point=5847821.0,6944563.0&point=5847680.0,6940053.0&point=5846927.0,6935472.0&point=5839594.0,6934340.0&point=5839042.0,6932620.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5838057.0,6922490.0&point=5836356.0,6923577.0&point=5835986.0,6928015.0&point=5836514.0,6926961.0&point=5837470.0,6927460.0&point=5837567.0,6927632.0&point=5838257.0,6931218.92&point=5839594.0,6934340.0&point=5842248.0,6937654.0&point=5846468.0,6949681.0&point=5848181.0,6963260.0&point=5848150.0,6964256.0&point=5848150.0,6964256.0&point=5847677.0,6964784.0&point=5847677.0,6964784.0&point=5847677.0,6964784.0&point=5847677.0,6964784.0&point=5847677.0,6964784.0&point=5847677.0,6964784.0&point=5847677.0,6964784.0&point=5847677.0,6964784.0&point=5848402.0,6977668.0&point=5850852.0,6984923.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5856417.0,6986259.0&point=5856417.0,6986259.0&point=5856901.0,6990087.0&point=5860987.0,6995674.11&point=5867584.0,6997742.0&point=5872957.0,6998560.0&point=5874326.0,7017131.0&point=5877898.0,7071277.0&point=5884134.46,7053852.47&point=5884134.46,7053852.47&point=5884019.87,7054625.98&point=5884019.87,7054625.98&point=5883905.27,7054425.44&point=5883905.27,7054425.44&point=5883905.27,7054425.44&point=5884793.37,7054382.46&point=5884793.37,7054382.46&point=5885149.25,7053875.25&point=5885147.89,7053769.27&point=5885147.89,7053769.27&point=5884781.0,7053618.0&point=5884818.46,7053452.48&point=5887049.5,7053081.29&point=5887049.5,7053081.29&point=5887119.36,7053075.65&point=5893125.71,7053049.7&point=5893795.0,7052212.75&point=5895012.07,7040371.12&point=5895602.5,7039310.75&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5896886.51,7039305.15&point=5895821.54,7040688.41&point=5894394.0,7052792.0&point=5893813.23,7055731.54&point=5893907.0,7056335.0&point=5893612.0,7055833.0&point=5893487.0,7055601.0&point=5893301.1,7053513.07&point=5892411.63,7053527.75&point=5886733.68,7053227.32&point=5885768.44,7051563.13&point=5885764.41,7050087.55&point=5883440.0,7012198.0&point=5874834.0,7010163.0&point=5866761.0,7009319.0&point=5864893.0,7006160.0&point=5872100.0,7005704.0&point=5899487.0,7001688.0&point=5901025.0,6982125.0&point=5903942.0,6979941.0&point=5903942.0,6979941.0&point=5903942.0,6979941.0&point=5909810.0,6975899.0&point=5909810.0,6975899.0&point=5909810.0,6975899.0&point=5909810.0,6975899.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5868670.0,6978172.0&point=5858918.0,6976335.0&point=5858918.0,6976335.0&point=5858918.0,6976335.0&point=5858918.0,6976335.0&point=5854804.0,6975302.0&point=5848721.0,6966821.0&point=5848692.0,6964872.0&point=5848440.0,6963856.0&point=5848181.0,6963260.0&point=5844848.0,6957294.0&point=5844848.0,6957294.0&point=5839791.0,6948519.0&point=5838470.0,6944538.0&point=5838289.0,6942274.0&point=5832106.0,6939260.0&point=5832174.0,6937500.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5843359.0,6924016.0&point=5847817.0,6919968.0&point=5847579.0,6918656.0&point=5850321.0,6912173.0&point=5850321.0,6912173.0&point=5850813.0,6912420.0&point=5848848.0,6926501.0&point=5848852.0,6927017.0&point=5848645.0,6934873.0&point=5843484.0,6937924.0&point=5844948.0,6957617.0&point=5846275.0,6961199.0&point=5846352.0,6961335.0&point=5846582.0,6978726.0&point=5846582.0,6978726.0&point=5847324.0,6979218.0&point=5848791.0,6980236.0&point=5857151.0,6981084.0&point=5857151.0,6981084.0&point=5857151.0,6981084.0&point=5857151.0,6981084.0&point=5857151.0,6981084.0&point=5857151.0,6981084.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5854562.0,6990702.0&point=5858851.0,6992799.0&point=5860930.33,6995686.89&point=5876906.0,6997545.0&point=5876906.0,6997545.0&point=5878102.0,7000806.0&point=5878102.0,7000806.0&point=5880820.0,7000447.0&point=5883400.0,7011917.0&point=5886771.96,7052067.41&point=5886861.0,7052216.0&point=5890565.47,7046381.27&point=5890767.0,7045134.0&point=5890670.0,7044756.0&point=5891390.0,7044955.0&point=5894754.87,7041645.89&point=5895054.25,7040453.0&point=5895762.35,7039565.34&point=5897545.19,7038886.33&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5901708.0,7028566.0&point=5900618.0,6973011.0&point=5894559.0,6959570.0&point=5888667.0,6956249.0&point=5888667.0,6956249.0&point=5888667.0,6956249.0&point=5888667.0,6956249.0&point=5888667.0,6956249.0&point=5885204.0,6957937.0&point=5878337.0,6961302.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5874372.0,6979626.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5873165.0,6978938.0&point=5868670.0,6978172.0&point=5859582.0,6969464.0&point=5855734.0,6935652.0&point=5853088.0,6934861.0&point=5852267.0,6932863.0&point=5849064.0,6933237.0&point=5844069.0,6934260.0&point=5844076.0,6934241.0&point=5843922.0,6932285.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5843922.0,6932285.0&point=5848812.0,6935272.0&point=5848980.0,6935272.0&point=5848998.0,6935270.0&point=5850634.0,6935095.0&point=5851018.0,6935079.0&point=5855397.0,6934646.0&point=5855543.0,6934651.0&point=5870069.0,6936105.0&point=5874617.0,6941385.0&point=5874610.31,6953460.05&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5877432.39,6957924.96&point=5889982.0,6975389.0&point=5890067.0,6985736.0&point=5895040.0,6987446.0&point=5895995.9,7037787.76&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5892714.84,7032020.22&point=5883440.0,7012198.0&point=5880820.0,7000447.0&point=5878673.0,6997597.0&point=5878673.0,6997597.0&point=5844706.0,6997700.0&point=5844664.0,6995618.0&point=5845006.0,6992518.0&point=5845006.0,6992518.0&point=5845933.0,6985502.0&point=5846399.0,6984949.0&point=5846626.0,6981331.0&point=5852008.0,6981671.0&point=5852008.0,6981671.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5857151.0,6981084.0&point=5857272.25,6979622.74&point=5862564.0,6979053.0&point=5862564.0,6979053.0&point=5858955.0,6970026.0&point=5859017.0,6969449.0&point=5860026.0,6968621.0&point=5860218.0,6967551.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5862305.0,6939620.0&point=5857167.0,6937617.0&point=5855734.0,6935652.0&point=5850785.0,6935100.0&point=5850634.0,6935095.0&point=5849426.0,6930035.0&point=5855708.0,6844506.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845973.0,6925184.0&point=5845762.0,6926244.0&point=5843778.0,6927876.0&point=5843778.0,6927876.0&point=5843778.0,6927876.0&point=5843778.0,6927876.0&point=5843778.0,6927876.0&point=5843778.0,6927876.0&point=5837221.0,6929465.0&point=5836821.0,6930031.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5837380.0,6924534.0&point=5835398.0,6924811.0&point=5834515.0,6924973.0&point=5834752.0,6923385.0&point=5833891.0,6925710.0&point=5833891.0,6925710.0&point=5834408.0,6926469.0&point=5834172.0,6926961.0&point=5834159.0,6933810.0&point=5830443.0,6934727.0&point=5830443.0,6934727.0&point=5830443.0,6934727.0&point=5828446.0,6934622.0&point=5828452.0,6934641.0&point=5829970.0,6935193.0&point=5832598.0,6936546.0&point=5832598.0,6936546.0&point=5834089.0,6936115.0&point=5837309.0,6936266.0&point=5838376.0,6944931.0&point=5838768.0,6946708.0&point=5839072.0,6947332.0&point=5839301.0,6947773.0&point=5839549.0,6948091.0&point=5839951.0,6948919.0&point=5839951.0,6948919.0&point=5842988.0,6974081.0&point=5842988.0,6974081.0&point=5842988.0,6974081.0&point=5842988.0,6974081.0&point=5842988.0,6974081.0&point=5841954.0,6977025.0&point=5844762.0,6978509.0&point=5844777.0,6981411.0&point=5844329.0,6982165.0&point=5844375.0,6982564.0&point=5844664.0,6995618.0&point=5847585.8,6996102.74&point=5847585.8,6996102.74&point=5847585.8,6996102.74&point=5847585.8,6996102.74&point=5848877.0,7038714.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5896266.63,7038768.95&point=5893614.2,7038862.8&point=5891834.0,7045583.0&point=5890077.17,7047095.3&point=5885839.04,7051477.03&point=5885686.49,7051668.64&point=5885286.92,7052294.08&point=5883957.84,7052574.82&point=5882573.82,7053049.93&point=5882519.5,7051820.0&point=5882656.0,7051517.0&point=5848877.0,7038714.0&point=5836080.0,7039915.0&point=5836080.0,7039915.0&point=5831474.0,7032383.0&point=5836127.0,7005948.0&point=5836127.0,7005948.0&point=5841368.0,7002574.0&point=5832853.0,7000287.0&point=5832853.0,7000287.0&point=5834685.0,6998045.0&point=5847585.8,6996102.74&point=5861200.52,6995647.65&point=5862073.0,6985073.0&point=5860107.0,6968406.0&point=5860120.0,6968371.0&point=5853271.0,6968306.0&point=5848789.0,6964503.0&point=5848332.0,6963657.0&point=5846347.0,6961326.0&point=5846039.0,6960780.0&point=5844439.0,6956586.0&point=5838777.0,6948946.0&point=5837906.0,6945167.0&point=5837790.0,6944947.0&point=5835801.0,6941379.0&point=5834246.0,6938834.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5848143.0,6925582.0&point=5863752.0,6925850.0&point=5876836.0,6921112.0&point=5876836.0,6921112.0&point=5876836.0,6921112.0&point=5879485.0,6922418.0&point=5891949.0,6926323.0&point=5889280.0,6954333.0&point=5889280.0,6954333.0&point=5888667.0,6956249.0&point=5888667.0,6956249.0&point=5888667.0,6956249.0&point=5888667.0,6956249.0&point=5885341.0,6958075.0&point=5884527.0,6994068.0&point=5884765.75,7052504.25&point=5884818.46,7053452.48&point=5884781.0,7053618.0&point=5884793.37,7054382.46&point=5884019.87,7054625.98&point=5883905.27,7054425.44&point=5882642.0,7051532.0&point=5882592.0,7051489.0&point=5869415.0,7013346.0&point=5836127.0,7005948.0&point=5836127.0,7005948.0&point=5836127.0,7005948.0&point=5836127.0,7005948.0&point=5837675.0,7002789.0&point=5837675.0,7002789.0&point=5832853.0,7000287.0&point=5817883.0,6987852.0&point=5816562.0,6988365.0&point=5816799.0,6987179.0&point=5817183.0,6986223.0&point=5816698.0,6986610.0&point=5816698.0,6986610.0&point=5815821.0,6986541.0&point=5815665.0,6987460.0&point=5812959.0,6981420.0&point=5811282.0,6976652.0&point=5811368.0,6976832.0&point=5822272.0,6980841.0&point=5822400.0,6980815.0&point=5839443.0,6975464.0&point=5833732.0,6972604.0&point=5833732.0,6972604.0&point=5830757.0,6970652.0&point=5831529.0,6943646.0&point=5831529.0,6943646.0&point=5831575.0,6935959.0&point=5832053.0,6934854.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5833385.0,6927859.0&point=5832939.0,6925869.0&point=5832428.0,6925513.0&point=5832561.0,6924030.0&point=5832133.0,6923644.0&point=5830407.0,6924660.0&point=5830145.0,6924672.0&point=5828893.0,6927497.0&point=5829038.0,6930539.0&point=5829038.0,6930539.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5838984.0,6920362.0&point=5836332.0,6920673.0&point=5836259.0,6921215.0&point=5836027.0,6921265.0&point=5836074.0,6919766.0&point=5834560.0,6920191.0&point=5833942.0,6918688.0&point=5833249.0,6918761.0&point=5832747.0,6920348.0&point=5822338.0,6927748.0&point=5819619.0,6928858.0&point=5815432.0,6933820.0&point=5812483.0,6934253.0&point=5815077.0,6939687.0&point=5815082.0,6940126.0&point=5815081.0,6940100.0&point=5815472.0,6938634.0&point=5815472.0,6938634.0&point=5824949.0,6936714.0&point=5826809.0,6935026.0&point=5827030.0,6934969.0&point=5829038.0,6930539.0&point=5834340.0,6928927.0&point=5843778.0,6927876.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5845453.0,6921353.0&point=5844507.0,6918854.0&point=5844492.0,6918792.0&point=5842980.0,6839623.0&point=5842779.09,6844024.39&point=5855708.0,6844506.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5857685.0,6916847.0&point=5853879.0,6918342.0&point=5853879.0,6918342.0&point=5858826.0,6925804.0&point=5862305.0,6939620.0&point=5879277.0,6947749.0&point=5898913.0,7037169.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5898913.0,7037169.0&point=5888153.0,6985104.0&point=5873165.0,6978938.0&point=5868460.0,6975962.0&point=5859031.0,6969968.0&point=5859031.0,6969968.0&point=5856521.0,6969886.0&point=5855382.0,6969534.0&point=5855410.0,6969515.0&point=5849989.0,6966665.0&point=5849101.61,6965094.35&point=5848331.0,6964170.0&point=5845799.0,6955146.0&point=5837263.0,6952244.0&point=5837530.0,6950011.0&point=5837273.0,6943898.0&point=5833846.0,6942062.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5831541.0,6925703.0&point=5831541.0,6925703.0&point=5831420.0,6926009.0&point=5830029.0,6924115.0&point=5830029.0,6924115.0&point=5829253.0,6924749.0&point=5828947.0,6925610.0&point=5827704.0,6924763.0&point=5826835.0,6925752.0&point=5824600.0,6928313.0&point=5827971.0,6926116.0&point=5827971.0,6926116.0&point=5830507.0,6927268.0&point=5830521.0,6927288.0&point=5831015.0,6929079.0&point=5853170.0,6929899.0&point=5853447.0,6930123.0&point=5853377.0,6930405.0&point=5856194.0,6930302.0&point=5853019.0,6941785.0&point=5849097.0,6945484.0&point=5849396.0,6947038.0&point=5849396.0,6947038.0&point=5849030.0,6949929.0&point=5847609.0,6946165.0&point=5846162.0,6941675.0&point=5847660.0,6940000.0&point=5847660.0,6940000.0&point=5848511.0,6933491.0&point=5849055.0,6933278.0&point=5849258.0,6934701.0&point=5851791.0,6935004.0&point=5852144.0,6934957.0&point=5853170.0,6929899.0&point=5855319.0,6914017.0&point=5863494.4,6908869.75&point=5863494.4,6908869.75&point=5863494.4,6908869.75&point=5859879.0,6906048.0&point=5852005.0,6904723.0&point=5852005.0,6904723.0&point=5851847.0,6899819.0&point=5852219.0,6896858.0&point=5852164.0,6896384.0&point=5852802.0,6872911.0&point=5870929.0,6858363.0&point=5875590.0,6856995.0&point=5895024.0,6857008.0&point=5906590.0,6992108.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5900281.0,6987717.0&point=5892182.0,6987620.0&point=5889512.0,6982318.0&point=5874372.0,6979626.0&point=5863797.0,6978907.0&point=5859979.0,6968765.0&point=5857186.0,6967405.0&point=5848150.0,6964256.0&point=5848014.0,6962957.0&point=5846461.0,6961528.0&point=5846352.0,6961336.0&point=5843277.0,6954680.0&point=5837370.0,6951456.0&point=5837024.0,6951374.0&point=5837024.0,6951374.0&point=5836538.0,6945230.0&point=5835485.88,6942392.45&point=5833846.0,6942062.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5827952.0,6927452.0&point=5824600.0,6928313.0&point=5816453.0,6929077.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5823559.0,6928305.0&point=5824099.0,6927268.0&point=5826008.0,6887357.0&point=5828567.75,6884588.8&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5828707.31,6884392.08&point=5830969.2,6881968.27&point=5845167.0,6881251.0&point=5844712.0,6882426.0&point=5843616.8,6894056.23&point=5843616.8,6894056.23&point=5843616.8,6894056.23&point=5843616.8,6894056.23&point=5846454.0,6897228.0&point=5851138.0,6900209.0&point=5851377.0,6900169.0&point=5851377.0,6900169.0&point=5852005.0,6904723.0&point=5852005.0,6904723.0&point=5852219.0,6896858.0&point=5853204.0,6889961.0&point=5853204.0,6889961.0&point=5887948.0,6884567.0&point=5895024.0,6857008.0&point=5898870.0,6847130.0&point=5907933.0,6843530.0&point=5907933.0,6843530.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5897344.0,6981226.0&point=5894471.0,6981192.0&point=5885875.0,6966213.0&point=5885875.0,6966213.0&point=5886607.0,6955051.0&point=5886267.0,6954695.0&point=5885136.0,6957779.0&point=5877432.39,6957924.96&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5875615.0,6959011.0&point=5872100.0,6961461.0&point=5872091.0,6961509.0&point=5872091.0,6961509.0&point=5860141.0,6968257.0&point=5856484.0,6968300.0&point=5853352.0,6968333.0&point=5848678.0,6964857.0&point=5847677.0,6964784.0&point=5847529.0,6964470.0&point=5847529.0,6964470.0&point=5840795.0,6964270.0&point=5813074.0,6962366.0&point=5809779.0,6961653.0&point=5809779.0,6961653.0&point=5806416.85,6959863.53&point=5813528.0,6960756.0&point=5813896.0,6959688.0&point=5816130.0,6955624.0&point=5812745.0,6943976.0&point=5811255.52,6939820.34&point=5808120.0,6940828.0&point=5805994.0,6934417.0&point=5805994.0,6934417.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5815432.0,6933820.0&point=5820880.0,6932222.0&point=5824140.0,6930944.0&point=5827086.0,6930620.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5841213.0,6930273.0&point=5840264.0,6938241.0&point=5838289.0,6942274.0&point=5828100.0,6942980.0&point=5828100.0,6942980.0&point=5831594.0,6943315.0&point=5832531.0,6936817.0&point=5847069.0,6936165.0&point=5847116.0,6935611.0&point=5848998.0,6935270.0&point=5853088.0,6934861.0&point=5853943.0,6934783.0&point=5862013.0,6934242.0&point=5862365.0,6934194.0&point=5871853.0,6930883.0&point=5868048.0,6932415.0&point=5867901.0,6932482.0&point=5867708.0,6929026.0&point=5867066.0,6928307.0&point=5867078.0,6928305.0&point=5878632.0,6924395.0&point=5860580.0,6882668.0&point=5860580.0,6882668.0&point=5887324.0,6875725.0&point=5887324.0,6875725.0&point=5898713.0,6848983.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5901787.0,6845459.0&point=5901787.0,6845459.0&point=5907933.0,6843530.0&point=5871318.0,6844059.0&point=5871318.0,6844059.0&point=5872695.0,6850120.0&point=5872695.0,6850120.0&point=5872695.0,6850120.0&point=5872695.0,6850120.0&point=5872695.0,6850120.0&point=5863501.0,6863554.0&point=5853366.19,6863868.73&point=5839935.0,6866254.0&point=5833664.33,6869107.83&point=5836694.0,6880577.0&point=5836474.0,6922047.0&point=5835829.0,6921765.0&point=5835575.0,6924209.0&point=5835002.0,6930177.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5832030.0,6929149.0&point=5831635.0,6928343.0&point=5831635.0,6928343.0&point=5820497.0,6928516.0&point=5818027.0,6929557.0&point=5816453.0,6929077.0&point=5816759.0,6929648.0&point=5820161.0,6931571.0&point=5820161.0,6931571.0&point=5822398.0,6932077.0&point=5822693.0,6935704.0&point=5824643.0,6935992.0&point=5825071.0,6936967.0&point=5826547.0,6939107.0&point=5827182.0,6941131.0&point=5827182.0,6941131.0&point=5827401.0,6941317.0&point=5828100.0,6942980.0&point=5828100.0,6942980.0&point=5828452.0,6934641.0&point=5828774.0,6934503.0&point=5828931.0,6934468.0&point=5831261.0,6932906.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5823559.0,6928305.0&point=5828567.75,6884588.8&point=5828707.31,6884392.08&point=5820291.0,6872314.0&point=5820291.0,6872314.0&point=5820291.0,6872314.0&point=5820291.0,6872314.0&point=5820291.0,6872314.0&point=5819844.0,6871652.0&point=5819103.0,6871210.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5818506.0,6870327.0&point=5819546.0,6870728.0&point=5819017.0,6869504.0&point=5823250.0,6857617.0&point=5827537.0,6855715.0&point=5835655.0,6848832.0&point=5836147.0,6848427.0&point=5837025.0,6847676.0&point=5838219.0,6846672.0&point=5838219.0,6846672.0&point=5838219.0,6846672.0&point=5838289.0,6846587.0&point=5842030.0,6846978.0&point=5835296.24,6848654.53&point=5835201.0,6844728.0&point=5833389.0,6844876.0&point=5833389.0,6844876.0&point=5837490.0,6846207.0&point=5837490.0,6846207.0&point=5837877.0,6845267.0&point=5837574.0,6843195.0&point=5837413.0,6843226.0&point=5840923.0,6843500.0&point=5840882.0,6843044.0&point=5840794.0,6842771.0&point=5842311.0,6841825.0&point=5871417.0,6841903.0&point=5871417.0,6841903.0&point=5871417.0,6841903.0&point=5871417.0,6841903.0&point=5871417.0,6841903.0&point=5907932.0,6843549.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5901112.0,6988076.0&point=5900657.0,6988071.0&point=5895212.0,6987423.0&point=5886002.0,6959857.0&point=5885564.0,6958788.0&point=5885564.0,6958788.0&point=5885410.4,6958673.92&point=5883849.0,6954382.0&point=5877251.67,6945767.54&point=5871097.0,6947266.0&point=5854647.0,6955101.0&point=5843722.0,6955455.0&point=5831731.0,6955244.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5816429.0,6955024.0&point=5816429.0,6955024.0&point=5816429.0,6955024.0&point=5816429.0,6955024.0&point=5816429.0,6955024.0&point=5816429.0,6955024.0&point=5816429.0,6955024.0&point=5817499.0,6932874.0&point=5828502.0,6931912.0&point=5829915.0,6931864.0&point=5829665.0,6931482.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5827604.0,6927229.0&point=5824651.0,6928288.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814869.0,6931687.0&point=5814749.0,6931797.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5812483.0,6934253.0&point=5804743.74,6935272.08&point=5804743.74,6935272.08&point=5804743.74,6935272.08&point=5804743.74,6935272.08&point=5804743.74,6935272.08&point=5814603.0,6939283.0&point=5815077.0,6939687.0&point=5822234.0,6935703.0&point=5832939.0,6925869.0&point=5842268.0,6919490.0&point=5871433.0,6910410.0&point=5880365.0,6881087.0&point=5878975.0,6875085.0&point=5877629.0,6856123.0&point=5877629.0,6856123.0&point=5898711.0,6841430.0&point=5898711.0,6841430.0&point=5897263.0,6877265.0&point=5897263.0,6877265.0&point=5897263.0,6877265.0&point=5894075.0,6873728.0&point=5882720.0,6871776.0&point=5883453.0,6868862.0&point=5883746.0,6868380.0&point=5887948.0,6884567.0&point=5887948.0,6884567.0&point=5887948.0,6884567.0&point=5893374.0,6888866.0&point=5882181.0,6919004.0&point=5881757.0,6919356.0&point=5881757.0,6919356.0&point=5881757.0,6919356.0&point=5877623.0,6913409.0&point=5876720.74,6915826.43&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5831261.0,6932906.0&point=5831122.0,6935244.0&point=5829426.0,6937698.0&point=5813704.0,6939629.0&point=5813704.0,6939629.0&point=5815077.0,6939687.0&point=5815069.0,6939892.0&point=5815154.0,6941142.0&point=5815173.0,6941477.0&point=5815945.0,6946388.0&point=5817827.0,6948474.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5821399.0,6952702.0&point=5823616.0,6956803.0&point=5823616.0,6956803.0&point=5819860.0,6945313.0&point=5819893.0,6941301.0&point=5826567.0,6941188.0&point=5827432.0,6930985.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5843930.0,6923853.0&point=5849861.16,6848389.66&point=5852210.0,6843378.0&point=5855708.0,6844506.0&point=5855708.0,6844506.0&point=5853266.82,6847973.86&point=5872695.0,6850120.0&point=5872117.0,6849781.0&point=5872117.0,6849781.0&point=5871318.0,6844059.0&point=5871208.0,6843069.0&point=5871417.0,6841903.0&point=5898711.0,6841430.0&point=5856453.0,6829486.0&point=5853960.0,6838244.0&point=5847546.0,6839182.0&point=5842777.0,6840180.0&point=5839262.0,6838631.0&point=5839190.0,6837854.0&point=5838983.0,6836220.0&point=5837084.0,6837906.0&point=5833209.0,6836207.0&point=5832263.0,6835698.0&point=5828463.0,6840061.0&point=5828474.0,6840314.0&point=5828457.0,6840367.0&point=5826035.0,6845402.0&point=5825772.0,6845428.0&point=5819870.0,6848116.0&point=5816329.0,6845810.0&point=5816532.0,6851391.0&point=5816745.0,6851790.0&point=5816745.0,6851790.0&point=5816745.0,6851790.0&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5819866.67,6852231.22&point=5822414.0,6855708.0&point=5822278.0,6856106.0&point=5827537.0,6855715.0&point=5827537.0,6855715.0&point=5827537.0,6855715.0&point=5833664.33,6869107.83&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5834340.0,6928927.0&point=5841292.0,6927929.0&point=5843248.0,6927825.0&point=5843368.0,6920247.0&point=5844238.0,6918860.0&point=5847404.0,6918048.0&point=5850321.0,6912173.0&point=5850358.0,6911890.0&point=5850632.0,6910092.0&point=5849107.0,6903972.0&point=5849107.0,6903972.0&point=5849107.0,6903972.0&point=5849107.0,6903972.0&point=5849107.0,6903972.0&point=5848471.0,6903344.0&point=5848602.0,6902957.0&point=5850229.0,6902724.0&point=5853587.0,6902758.0&point=5852501.7,6904942.47&point=5852501.7,6904942.47&point=5851309.0,6906643.0&point=5851449.0,6908057.0&point=5850632.0,6910092.0&point=5850632.0,6910092.0&point=5854994.0,6913621.0&point=5853879.0,6918342.0&point=5857289.0,6916712.0&point=5862571.0,6922864.0&point=5863126.0,6923561.0&point=5862305.0,6939620.0&point=5849709.0,6948720.0&point=5849030.0,6949929.0&point=5837870.0,6950001.0&point=5837328.0,6950082.0&point=5810738.0,6946704.0&point=5810738.0,6946704.0&point=5812745.0,6943976.0&point=5813533.0,6942972.0&point=5808594.0,6940123.0&point=5808594.0,6940123.0&point=5807473.0,6935816.0&point=5804743.74,6935272.08&point=5804743.74,6935272.08&point=5805068.01,6935080.85&point=5805441.0,6932581.0&point=5814869.0,6931687.0&point=5822051.0,6931495.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5831529.0,6922533.0&point=5829721.0,6921959.0&point=5820291.0,6872314.0&point=5817350.0,6868324.0&point=5817206.0,6867566.0&point=5817193.0,6867581.0&point=5817891.0,6867242.0&point=5816221.83,6866569.31&point=5815989.0,6866796.0&point=5815959.0,6866783.0&point=5814567.0,6869770.0&point=5813351.0,6867727.0&point=5812613.35,6864602.94&point=5808846.0,6859724.0&point=5808846.0,6859724.0&point=5806951.0,6858429.0&point=5806951.0,6858429.0&point=5806951.0,6858429.0&point=5806951.0,6858429.0&point=5806951.0,6858429.0&point=5806951.0,6858429.0&point=5806951.0,6858429.0&point=5806951.0,6858429.0&point=5807522.0,6855783.0&point=5809796.0,6854304.0&point=5811713.0,6857336.0&point=5811713.0,6857336.0&point=5816745.0,6851790.0&point=5816532.0,6851391.0&point=5816329.0,6845810.0&point=5828457.0,6840367.0&point=5871047.0,6840107.0&point=5872590.0,6837914.0&point=5872590.0,6837916.0&point=5872695.0,6850120.0&point=5886545.0,6841034.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898870.0,6847130.0&point=5898593.0,6847230.0&point=5898409.0,6847304.0&point=5898167.0,6847402.0&point=5898174.0,6847421.0&point=5898713.0,6848983.0&point=5898713.0,6848983.0&point=5895024.0,6857008.0&point=5823363.0,6857777.0&point=5822158.0,6860227.0&point=5820910.0,6859990.0&point=5820711.0,6861417.0&point=5819706.0,6866709.0&point=5831012.0,6923201.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5814358.0,6853221.0&point=5814358.0,6853221.0&point=5812145.0,6855013.0&point=5809796.0,6854304.0&point=5806888.0,6854078.0&point=5806623.0,6854707.0&point=5807522.0,6855783.0&point=5803174.51,6857240.44&point=5802839.0,6851283.0&point=5802839.0,6851283.0&point=5802839.0,6851283.0&point=5803014.0,6850925.0&point=5803014.0,6850925.0&point=5803785.0,6848416.0&point=5807539.0,6850657.0&point=5807539.0,6850657.0&point=5808939.0,6850524.0&point=5808891.0,6850053.0&point=5808778.0,6849125.0&point=5808778.0,6849125.0&point=5808778.0,6849125.0&point=5808778.0,6849125.0&point=5808586.0,6848057.0&point=5808521.0,6847685.0&point=5809318.0,6846712.0&point=5810148.0,6845817.0&point=5810148.0,6845817.0&point=5810451.0,6843319.0&point=5811334.0,6845393.0&point=5811103.0,6848951.0&point=5811103.0,6848951.0&point=5814419.0,6846813.0&point=5814419.0,6846813.0&point=5812435.0,6845182.0&point=5812373.0,6843018.0&point=5812373.0,6843018.0&point=5812373.0,6843018.0&point=5812373.0,6843018.0&point=5812373.0,6843018.0&point=5812373.0,6843018.0&point=5812373.0,6843018.0&point=5812369.0,6842923.0&point=5815780.0,6842736.0&point=5815780.0,6842736.0&point=5816022.0,6844593.0&point=5816010.0,6844601.0&point=5816004.0,6844605.0&point=5816017.0,6844669.0&point=5816684.0,6843960.0&point=5820232.0,6841486.0&point=5820232.0,6841486.0&point=5820267.0,6842665.0&point=5820246.0,6845010.0&point=5821126.0,6844223.0&point=5823550.0,6845177.0&point=5828474.0,6840314.0&point=5828475.0,6840328.0&point=5828462.0,6840478.0&point=5852600.28,6878051.43&point=5868623.0,6934149.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5803785.0,6848416.0&point=5802864.0,6848659.0&point=5795283.0,6856968.0&point=5810101.0,6938640.0&point=5815084.0,6940152.0&point=5818545.0,6969575.0&point=5848294.0,6982527.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5853872.0,6984798.0&point=5801548.45,6980697.21&point=5800813.0,6980848.0&point=5800338.0,6980947.0&point=5800574.0,6977913.0&point=5809058.0,6973216.0&point=5808962.0,6964058.0&point=5779387.82,6953732.42&point=5791665.0,6949003.0&point=5797366.0,6855960.0&point=5799047.0,6858988.0&point=5799602.0,6859014.0&point=5801071.0,6859234.0&point=5801165.0,6859912.0&point=5801834.0,6856458.0&point=5803174.51,6857240.44&point=5802978.0,6851751.0&point=5802842.0,6851276.0&point=5803014.0,6850925.0&point=5800821.0,6849569.0&point=5803613.0,6849962.0&point=5805030.0,6853439.0&point=5805922.0,6854694.0&point=5805965.0,6854690.0&point=5805869.0,6854727.0&point=5805869.0,6854727.0&point=5805725.0,6855109.0&point=5806829.0,6855520.0&point=5806951.0,6858429.0&point=5808846.0,6859724.0&point=5808846.0,6859724.0&point=5813285.0,6867678.0&point=5820291.0,6872314.0&point=5820291.0,6872314.0&point=5831534.0,6929880.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5833046.0,6925356.0&point=5832982.0,6924017.0&point=5834174.0,6923991.0&point=5834582.0,6921954.0&point=5834636.0,6924150.0&point=5834636.0,6924150.0&point=5833778.0,6930620.0&point=5833778.0,6930620.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
http://127.0.0.1:8989/maps/?point=5842368.0,6925753.0&point=5832293.0,6935383.0&point=5832294.0,6935386.0&point=5829852.0,6935309.0&point=5827950.0,6935917.0&point=5824949.0,6936714.0&point=5817102.0,6937790.0&point=5815876.0,6946573.0&point=5815660.0,6946873.0&point=5815439.0,6946981.0&point=5813044.0,6962877.0&point=5813044.0,6962877.0&point=5812838.0,6962963.0&point=5808962.0,6964058.0&point=5810839.0,6970326.0&point=5811393.0,6962284.0&point=5814377.0,6947156.0&point=5814802.0,6941902.0&point=5816985.0,6937674.0&point=5819741.0,6935686.0&point=5819764.0,6928154.0&point=5820291.0,6872314.0&point=5822104.0,6873336.0&point=5822104.0,6873336.0&point=5822104.0,6873336.0&point=5823250.0,6857617.0&point=5828445.0,6840063.0&point=5831873.0,6835375.0&point=5831873.0,6835375.0&point=5832046.0,6835562.0&point=5832108.0,6835601.0&point=5832159.0,6835633.0&point=5831805.0,6887148.0&point=5834241.0,6888404.0&point=5848889.0,6902618.0&point=5849690.0,6902625.0&point=5849937.0,6902678.0&point=5851880.0,6904428.0&point=5852501.7,6904942.47&point=5852498.0,6904925.0&point=5855539.0,6906211.0&point=5854671.0,6900000.0&point=5887948.0,6884567.0&point=5887948.0,6884567.0&point=5900841.0,6921551.0&point=5904908.0,6992962.0&point=5906897.0,6991872.0&point=5907658.0,7038354.0&point=5907658.0,7038354.0&point=5842368.0,6925753.0&locale=de&vehicle=car&weighting=fastest&elevation=false&use_miles=false&layer=Omniscale
history
login as: engels
engels@192.168.2.47's password:
Welcome to Ubuntu 18.04.2 LTS (GNU/Linux 4.15.0-54-generic x86_64)
* Documentation: https://help.ubuntu.com
* Management: https://landscape.canonical.com
* Support: https://ubuntu.com/advantage
System information disabled due to load higher than 1.0
243 packages can be updated.
165 updates are security updates.
Last login: Tue Sep 22 13:58:26 2020
engels@ubuntu-gh:~$ history
1 curl
2 curl --help+
3 curl --help
4 curl -url 192.168.2.96:8989
5 sudo curl -url 192.168.2.96:8989
6 cd OpenRailRouting/
7 dir
8 sudo bash build.sh
9 sudo apt-get install maven
10 sudo bash build.sh
11 sudo apt-get install java
12 sudo apt-get install jdk
13 sudo apt-get install openjdk
14 cd ..
15 pwd
16 git clone https://github.com/graphhopper/graphhopper.git
17 sudo git clone https://github.com/graphhopper/graphhopper.git
18 https://github.com/graphhopper/graphhopper.git
19 cd graphhopper/
20 git checkout master
21 sudo git checkout master
22 ./graphhopper.sh -a web europe_germany_berlin.pbf
23 ./graphhopper.sh -a web europe_germany_berlin.pbf -o berlin-gh
24 ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
25 sudo apt-get install javac
26 sudo apt-get install openjdk-8-jdk-headless
27 ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
28 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
29 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh -d --port 8989
30 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh -- port 11111
31 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh -d --port 11111
32 sudo mc
33 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
34 sudo ps
35 kill 6857
36 sudo kill 6857
37 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
38 ifconfig
39 sudo mc
40 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
41 cd ..
42 dir
43 cd OpenRailRouting/
44 dir
45 java -Xmx2500m -Xms50m -Dgraphhopper.prepare.ch.weightings=no -Dgraphho pper.datareader.file=$OSMFILE -Dgraphhopper.profiles=freight_diesel -jar targe t/railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar $ACTION $CONFIG_FILE $OPTARG
46 sudo bash build.sh
47 exit
48 sudo apt-get update
49 git clone https://github.com/geofabrik/OpenRailRouting.git
50 git submodule init
51 dir
52 cd OpenRailRouting/
53 git submodule init
54 git submodule update
55 sudo apt-get install mc
56 sudo mc
57 lsof -i
58 sudo lsof -i
59 ps
60 sudo lsof -i
61 kill 662
62 kill 6628
63 sudo kill 6628
64 sudo lsof -i
65 exit
66 ifconfig
67 history
engels@ubuntu-gh:~$
engels@ubuntu-gh:~$ history
1 curl
2 curl --help+
3 curl --help
4 curl -url 192.168.2.96:8989
5 sudo curl -url 192.168.2.96:8989
6 cd OpenRailRouting/
7 dir
8 sudo bash build.sh
9 sudo apt-get install maven
10 sudo bash build.sh
11 sudo apt-get install java
12 sudo apt-get install jdk
13 sudo apt-get install openjdk
14 cd ..
15 pwd
16 git clone https://github.com/graphhopper/graphhopper.git
17 sudo git clone https://github.com/graphhopper/graphhopper.git
18 https://github.com/graphhopper/graphhopper.git
19 cd graphhopper/
20 git checkout master
21 sudo git checkout master
22 ./graphhopper.sh -a web europe_germany_berlin.pbf
23 ./graphhopper.sh -a web europe_germany_berlin.pbf -o berlin-gh
24 ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
25 sudo apt-get install javac
26 sudo apt-get install openjdk-8-jdk-headless
27 ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
28 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
29 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh -d --port 8989
30 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh --port 11111
31 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh -d --port 11111
32 sudo mc
33 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
34 sudo ps
35 kill 6857
36 sudo kill 6857
37 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
38 ifconfig
39 sudo mc
40 sudo ./graphhopper.sh -a web -i europe_germany_berlin.pbf -o berlin-gh
41 cd ..
42 dir
43 cd OpenRailRouting/
44 dir
45 java -Xmx2500m -Xms50m -Dgraphhopper.prepare.ch.weightings=no -Dgraphhopper.datareader.file=$OSMFILE -Dgraphhopper.profiles=freight_diesel -jar target/railway_routing-0.0.1-SNAPSHOT-jar-with-dependencies.jar $ACTION $CONFIG_FILE $OPTARG
46 sudo bash build.sh
47 exit
48 sudo apt-get update
49 git clone https://github.com/geofabrik/OpenRailRouting.git
50 git submodule init
51 dir
52 cd OpenRailRouting/
53 git submodule init
54 git submodule update
55 sudo apt-get install mc
56 sudo mc
57 lsof -i
58 sudo lsof -i
59 ps
60 sudo lsof -i
61 kill 662
62 kill 6628
63 sudo kill 6628
64 sudo lsof -i
65 exit
66 ifconfig
67 history
engels@ubuntu-gh:~$
Written on July 22, 2019
